SPECIFICATIONS

10: Steel

Brand Name: MXR

Claims: No any proprietary rights,affiliate and sponsorship with the third party marks.

Feature: Easy bolt-on installation

Features: Levels the front with the rear of the vehicle

Fit 1: For Chevy S10 Blazer 2WD 1983-1994

Fit 2: For GMC Jimmy 2WD 1984-1997 V6 Only

Fit 3: For Chevy S10 2WD 1982-2004

Fit 4: For GMC Sonoma 2WD 1984-2004

High-concerned chemical: None

Interchange Part Number: Shock Spacer Block Strut Spring Suspension Body

Item Height: 27cm

Item Length: 70cm

Item Weight: 9500g

Item Width: 36.5cm

Kit Parts Included: Lift Spacers, Bolts, Lift Spacers/Blocks ,

Manufacturer Part Number: For Chevy S10 2WD 1982-2004

OEM NO.: For Chevy S10 2WD 1982-2004

Other Part Number: Lift Kit w/Shocks,Lift Kit,Lift Kit Spacers

Placement on Vehicle: Left, Right, Front, Rear

Product Note: Due to the light and different screen display,the picture and product maybe slightly different

Product Type: This is aftermarket replcement part.

Special Features: For GMC Sonoma 2WD 1984-2004

feature: Increased ground clearance

features: Professional Protective coating to stop oxidation and rusting

3" / 4" Drop Coil Spring Lowering Kit For Chevrolet S10 2WD V6 1982-2004

Fitment:

For Chevy S10 2WD 1982-2004
For GMC Sonoma 2WD 1984-2004
For Chevy S10 Blazer 2WD 1983-1994
For GMC Jimmy 2WD 1984-1997
V6 Only

Feature:

Reduced ground clearance
Lower center of gravity
Easy to hand the vehicle

Specification:

Placement on Vehicle:Left, Right, Front, Rear
Part Type:Leveling Kit, Drop Kit

product type: drop kit

drop height: 3" front; 4" rear

material: High Tensile Strength Steel

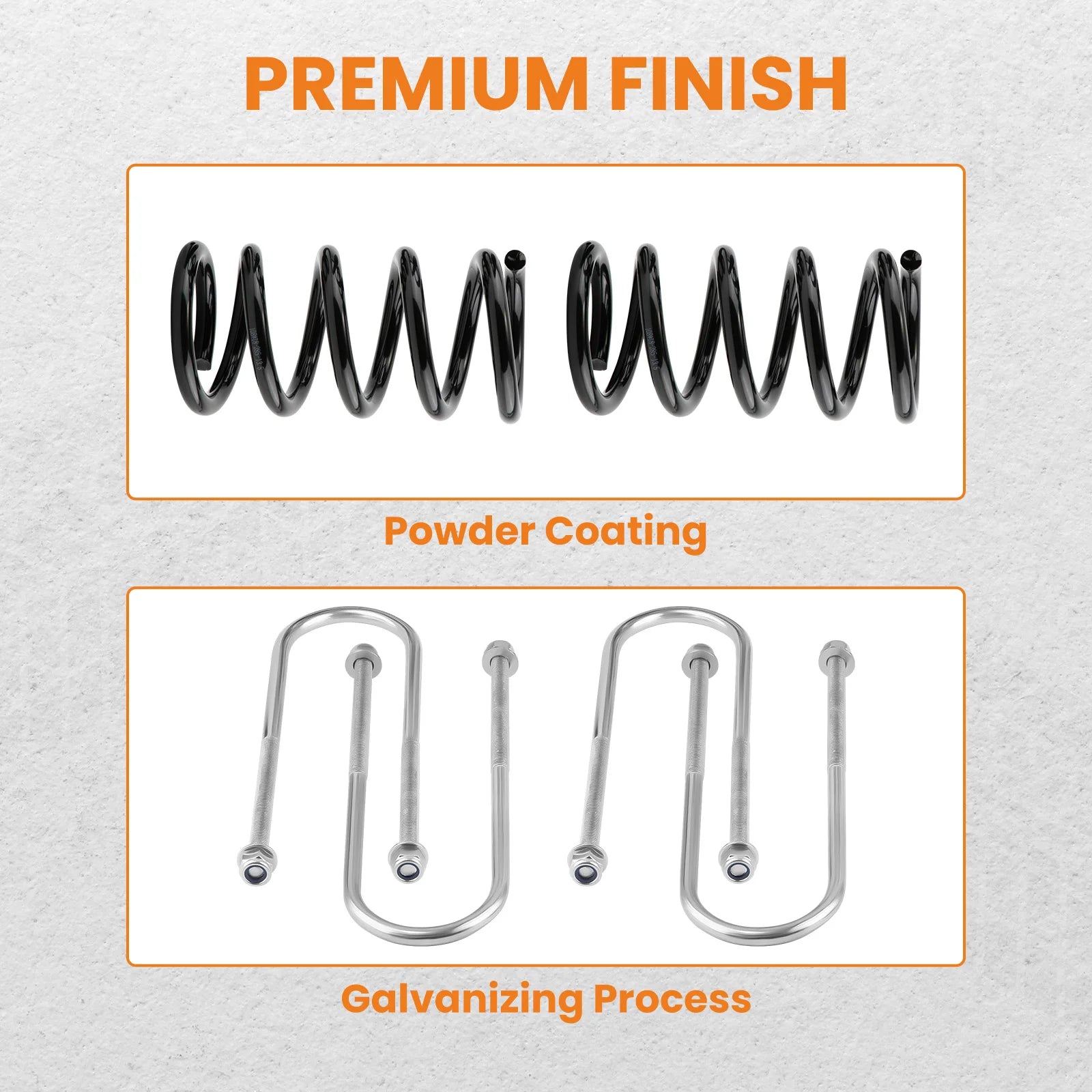

finish: powder coated

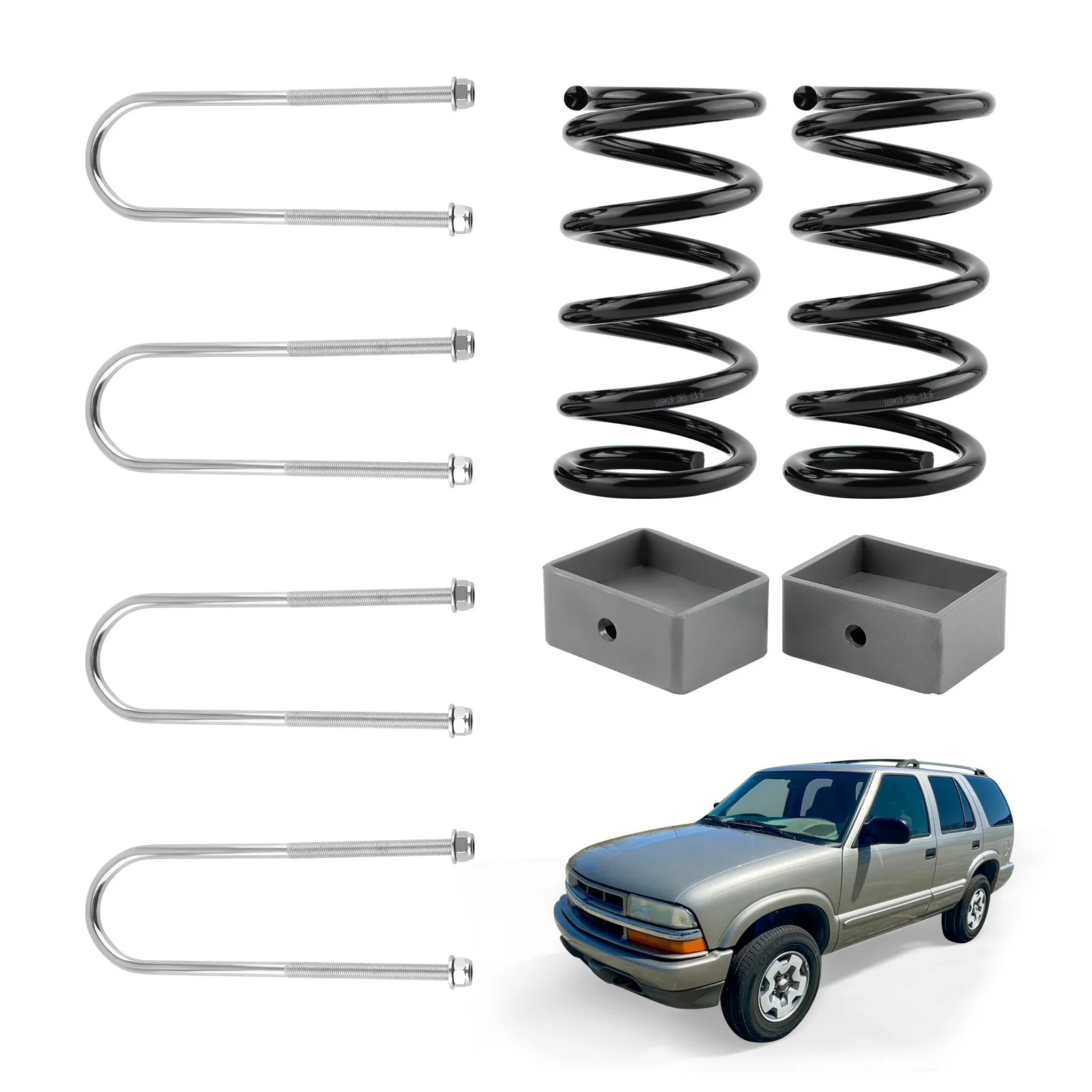

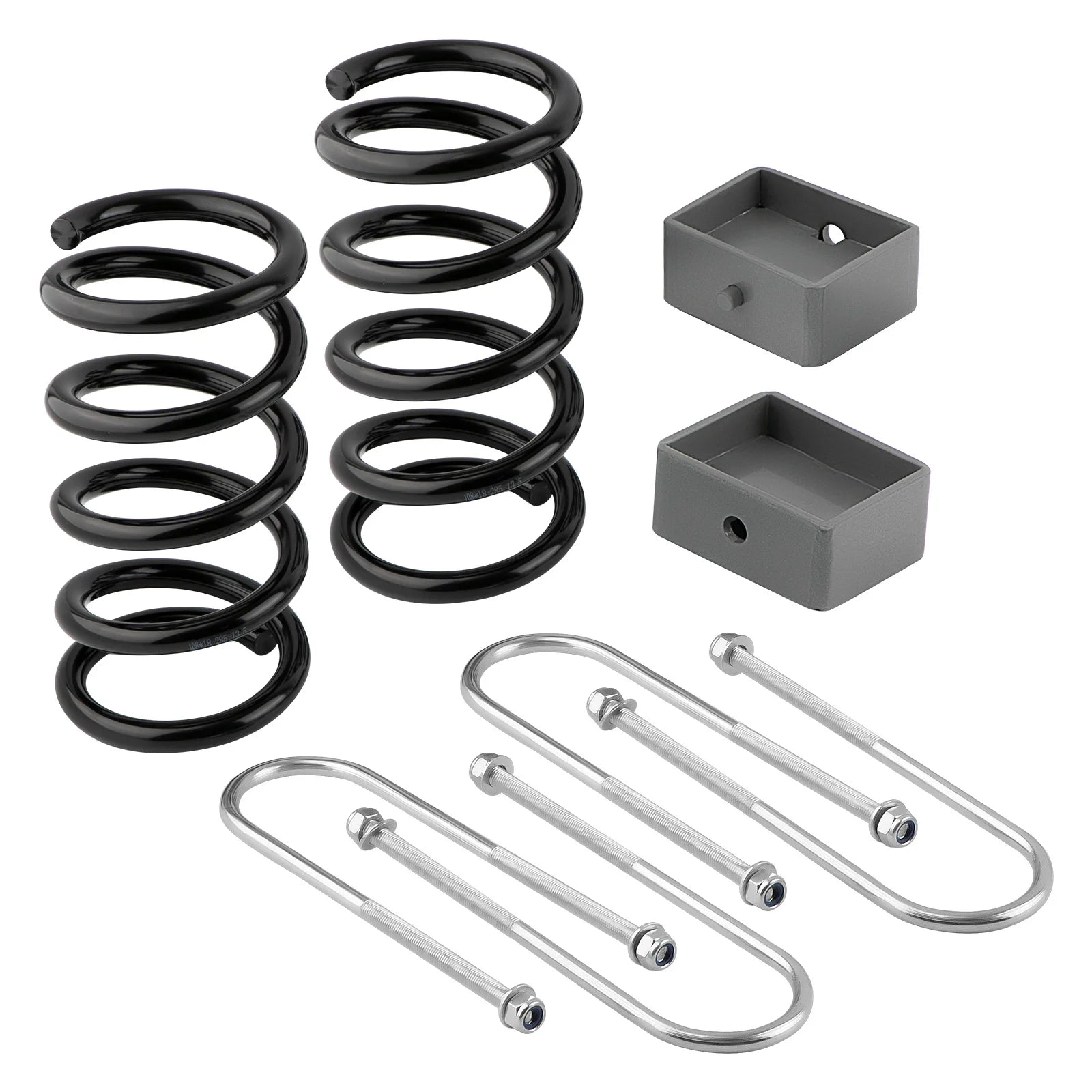

Package Includes:

2x 3" drop front coils

coil length: 285mm/11.22"

coil rate: 13.5 kg/mm (755.96 lbs/inch)

2x rear leaf spring blocks

Block length: 125mm/4.92"

block width: 56mm/2.2"

4x rear U-bolts with washers and nuts

U-bolt length: 285mm/11.22"

package dimensions: 40*35*22 cm

weight: 14.5 kg
