SPECIFICATIONS
10: Steel
Brand Name: MXR
Claims: No any proprietary rights,affiliate and sponsorship with the third party marks.
Fit: for Chevy C10 / C1000 Truck 2WD 1960-1972
Fit : for Chevy C20 / C2000 Suburban 2WD 1967-1972
Fit 1 : for Chevy C20 / C2000 Truck 2WD 1960-1972
Fit 2 : for GMC C15 / C1500 Pickup 1967-1972
Fit 3: for GMC C25 / C2500 Truck 2wd 1960-1972
Fit 3 : for GMC C15 / C1500 Suburban 1968-1972
Fit 4: for GMC Jimmy 2WD 1969-1972
Fitment: for Chevy/for GMC C10 1963-1972
Height Range: 3'' Rear
High-concerned chemical: None
Interchange Part Number: for Chevy C10 / C10 Suburban 1967-1972
Item Height: 17.0cm
Item Length: 35.0cm
Item Weight: 5400g
Item Width: 26.0cm
Manufacturer Part Number: for Chevy C10 Panel 1963-1967
Other Part Number: for Chevy Blazer 2WD 1969-1972
Package includes: 2x Rear Lowering Blocks and U-bolts
Product Note: Due to the light and different screen display,the picture and product maybe slightly different
Product Type: This is aftermarket replcement part.
Special Features: for Chevy C10 Pickup 1963-1972
3" inch Lowering Blocks Drop Kit Fit GMC C10 1968-72 1964 1965 1966 1967
Description:
- A simple and practical way to reduce the height of the rear of a C10 or C20 truck without affecting the driving quality.
- These lowering kits are specially made for Chevy 1960-1972 and for GMC C10/C20 2WD trucks equipped with factory rear coil springs.
- Pickup truck rear lowering blocks allow you to customize your ride, provide a lowered stance and boost handling performance
- Located between the axle housing and the rear lower trailing arm, it provides you with a 3" lowering volume.
Application :
- for Chevy C10 Panel 1963-1967
- for Chevy C10 Pickup 1963-1972
- for Chevy C10 / C10 Suburban 1967-1972
- for Chevy Blazer 2WD 1969-1972
- for Chevy C10 / C1000 Truck 2WD 1960-1972
- for Chevy C20 / C2000 Suburban 2WD 1967-1972
- for Chevy C20 / C2000 Truck 2WD 1960-1972
- for GMC C15 / C1500 Pickup 1967-1972
- for GMC C15 / C1500 Suburban 1968-1972
- for GMC C25 / C2500 Truck 2wd 1960-1972
- for GMC Jimmy 2WD 1969-1972
Feature:
- Safe/Economical solution
- Ease of installation
- Direct bolt-in, no additional modifications
- Installation time: 2-3 Hours
Specification:
- Drop Length: 3"
- Block's Height: 2"
- Placement on Vehicle:Left, Right, Rear
- Surface Finish：Powder Coated
- Material: Steel
- Package Size：32*23*15cm
- Weight：5.12kg

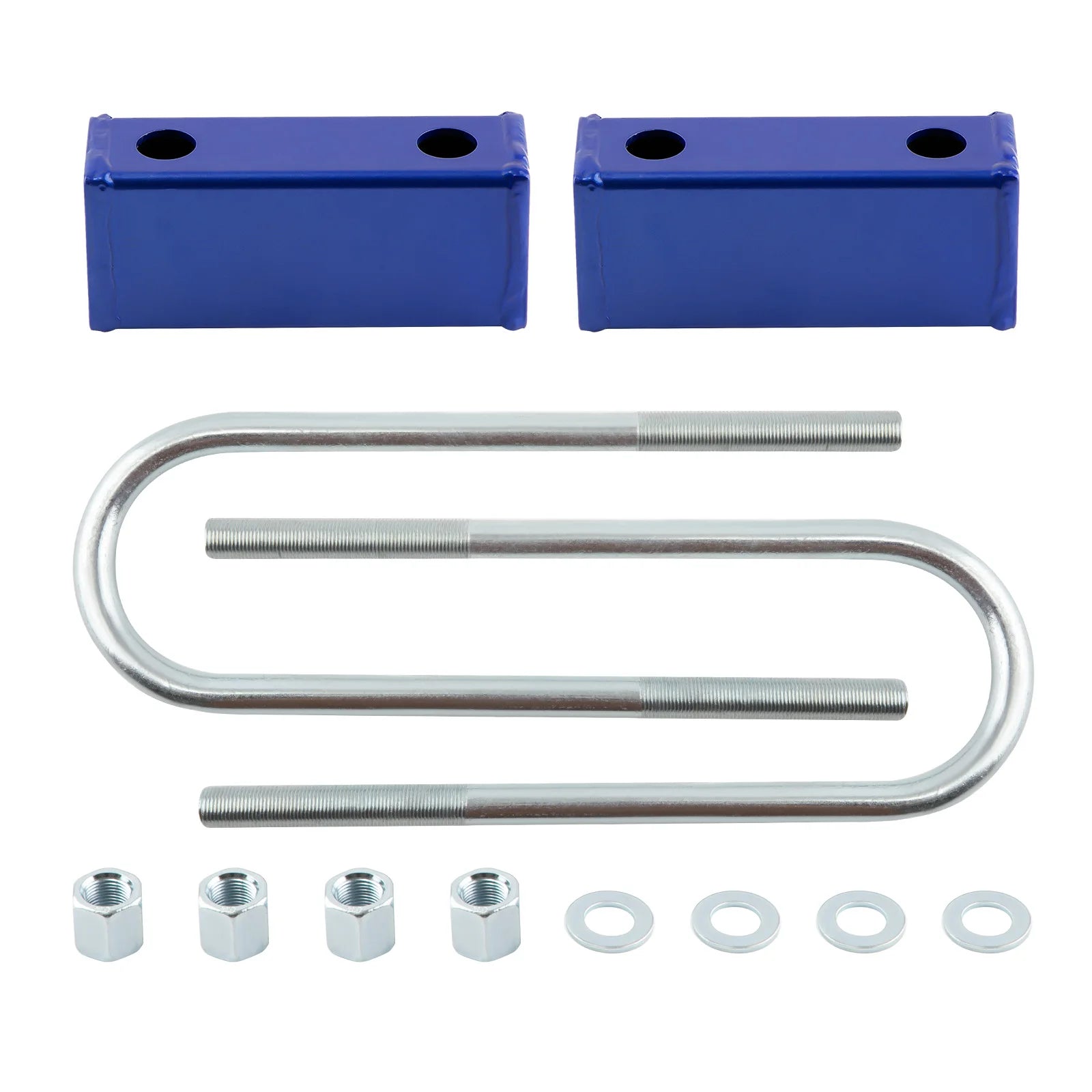

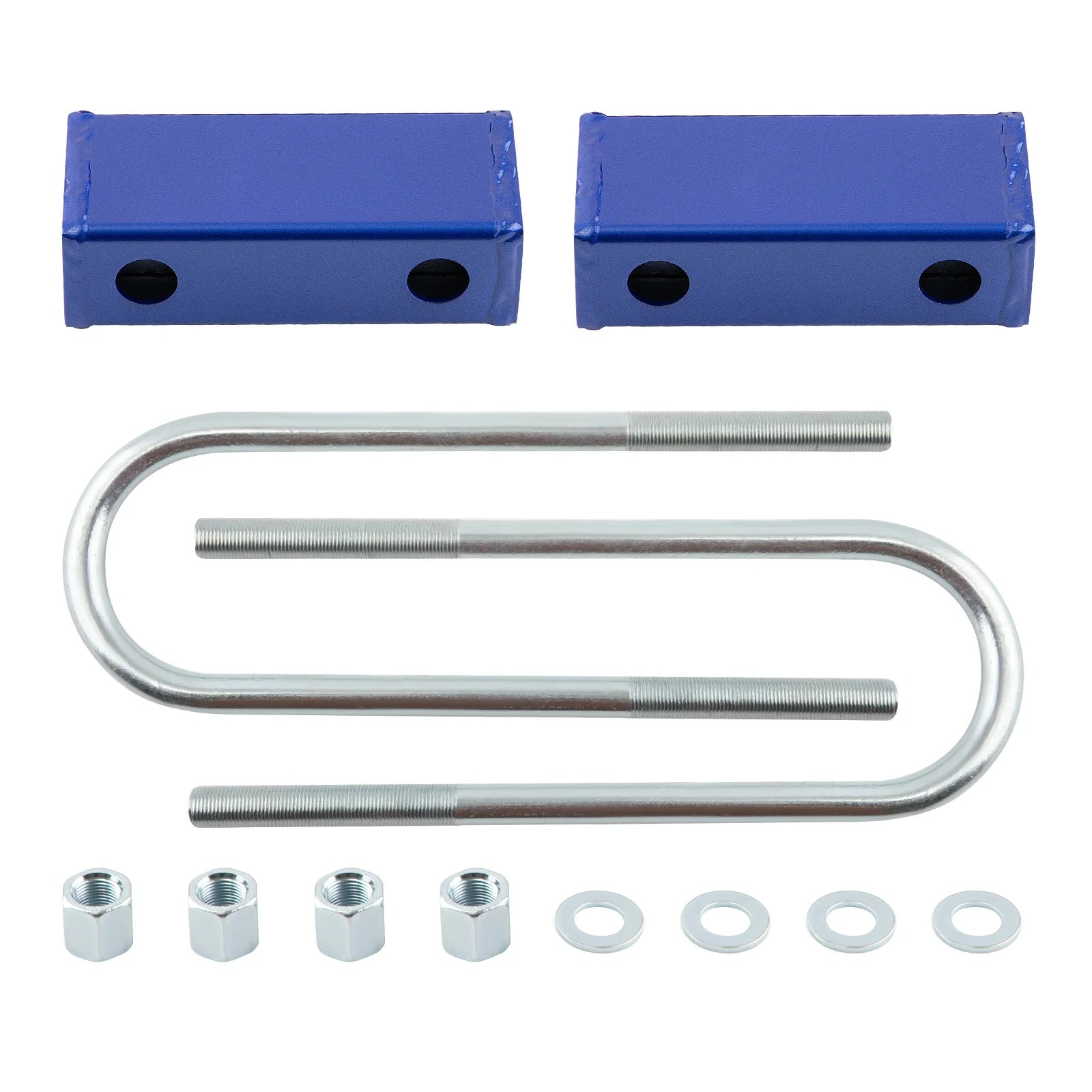

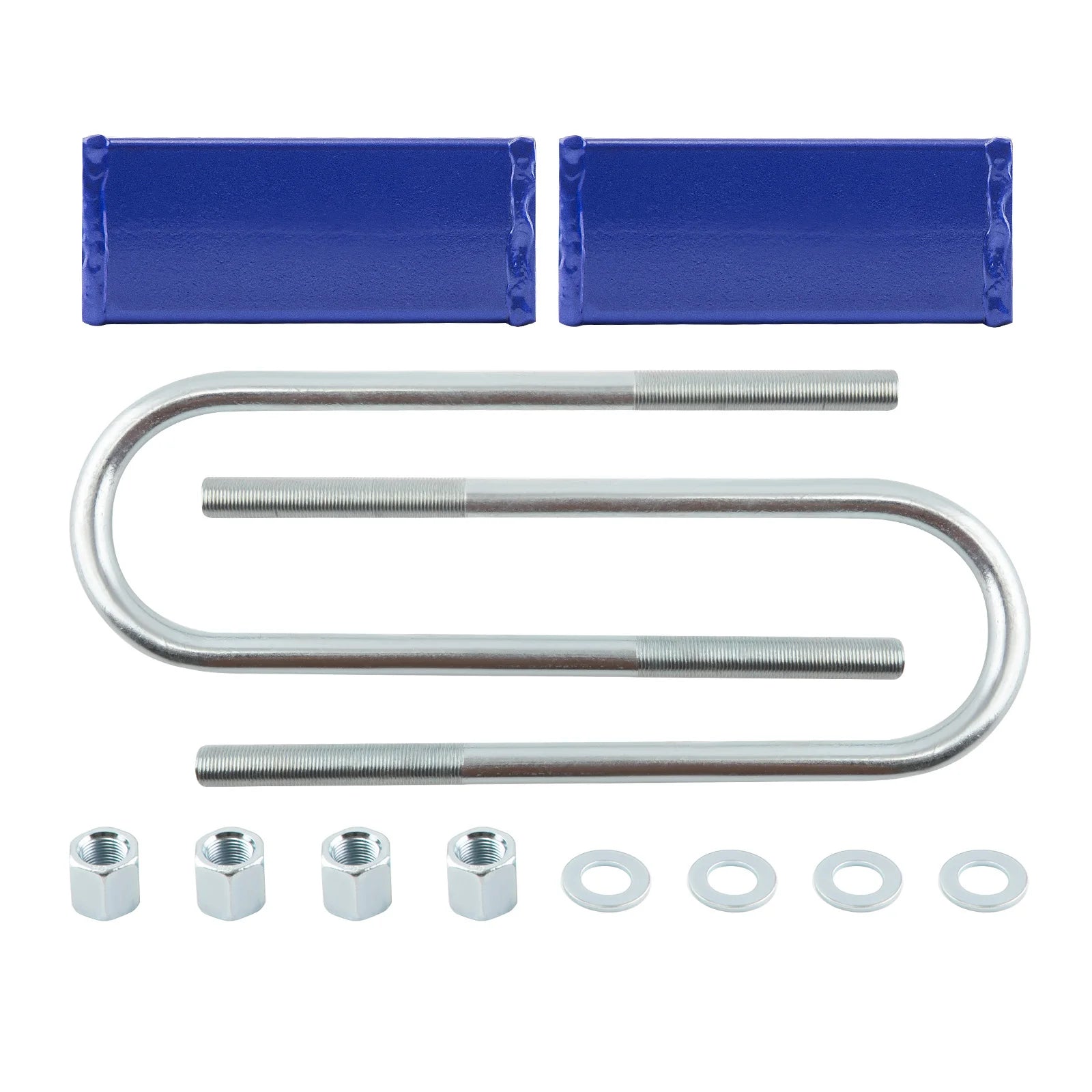

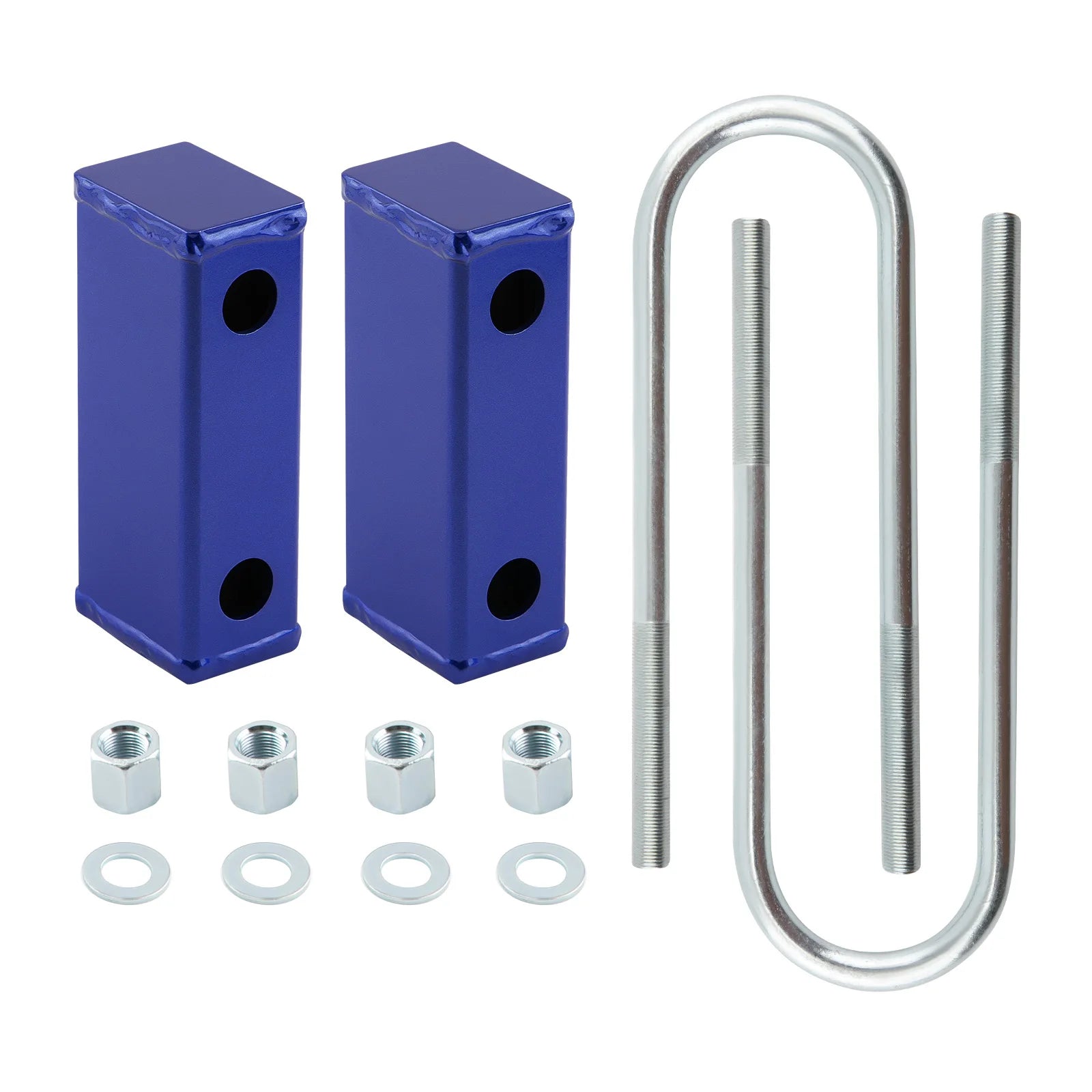

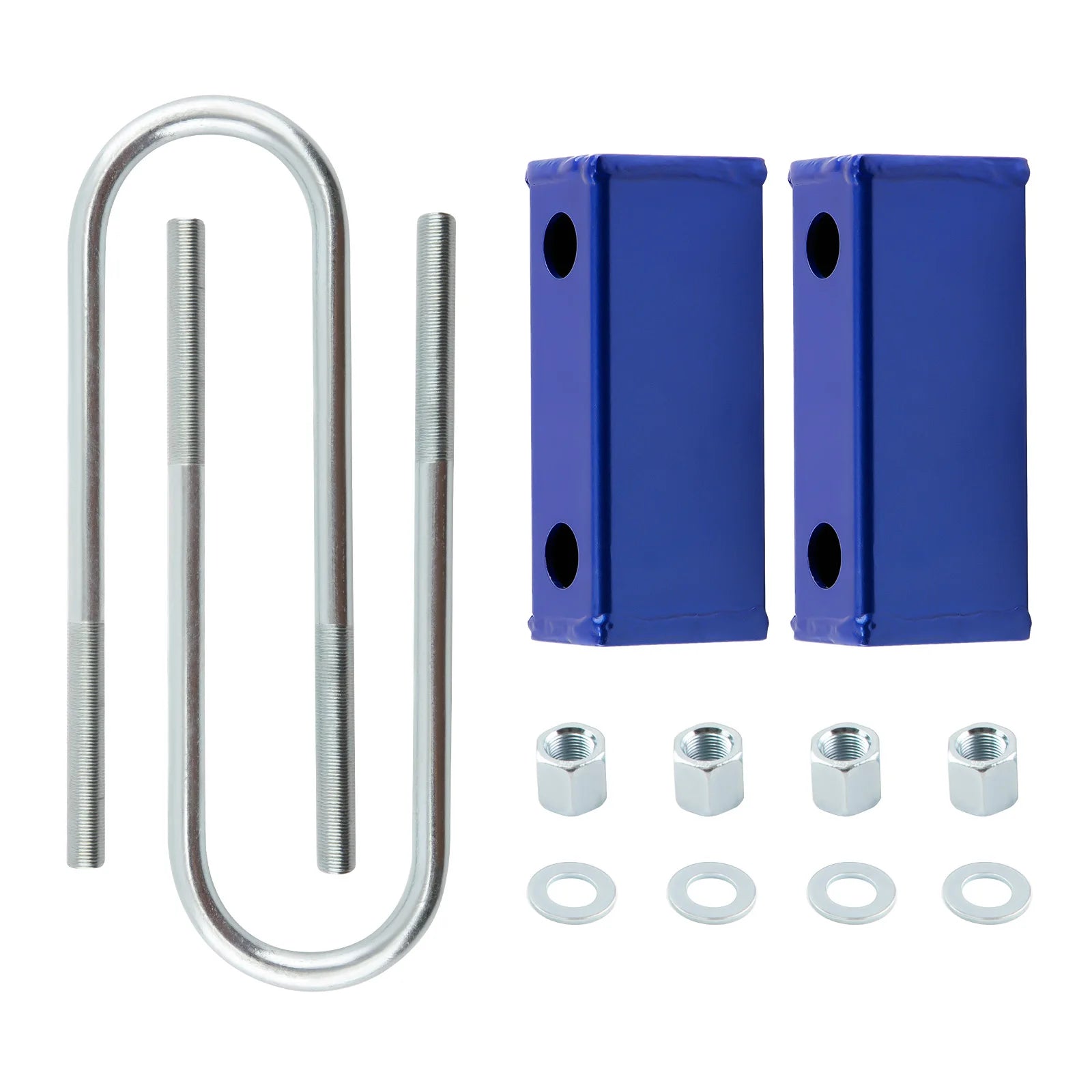

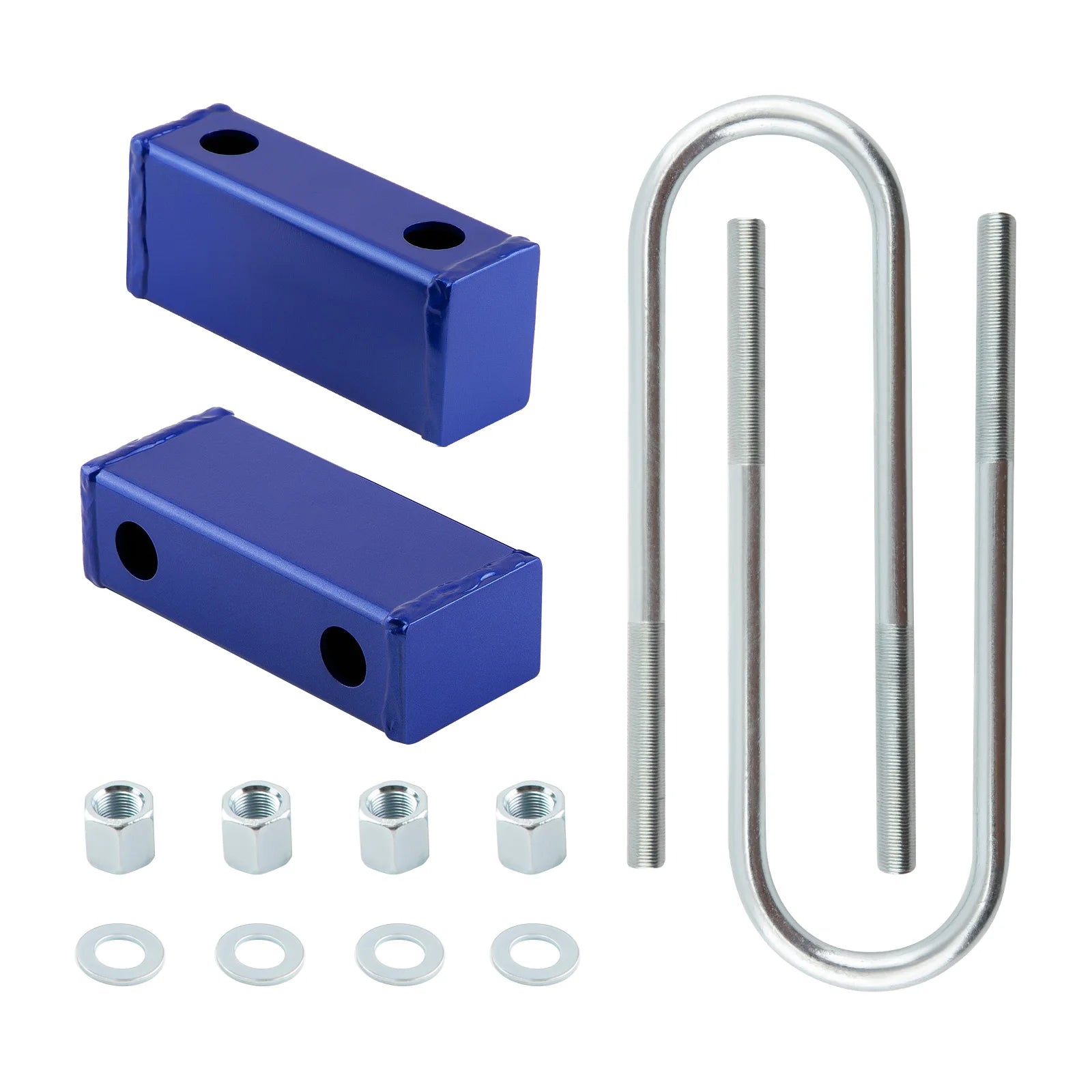

Package Includes:
- 2x Drop Lowering Blocks
- 2x U-Bolts
- Nuts and washers
