SPECIFICATIONS
Applicable Regions: 2500 lb
Brand Name: MXR
Bundle Listing: Yes
Claims: No any proprietary rights,affiliate and sponsorship with the third party marks.
Condition: Brand New
Country/Region of Manufacture: CN US AU FR DE UK
Hign-concerned Chemical: None
Interchange Part Number: 2500 Pound air spring bag 1/2"NPT Single Port air spring bag
Item Height: 10cm
Item Length: 21cm
Item Weight: 5kg
Item Width: 21cm
Manufacturer Part Number: air Suspension bag
Material: for GMC Sierra,
Note: No Instruction Included
OEM NO.: for Ford F150/F250,
Placement on Vehicle: Front ,Rear, Left, Right
Product Note: Due to the light and different screen display,the picture and product maybe slightly different
Product Type: This is aftermarket replcement part.
Quantity: 2 pieces,1 piece
Special Features: air Suspension bags
Type: Air Pressure,Air Suspension Spring Bag
Universal Fitment: Yes
Warranty: 2 Year
Please confirm whether the air suspenison bag parameters below(especially height, diameter, bolt specifications) are consistent with ours before purchasing.
Fit for:

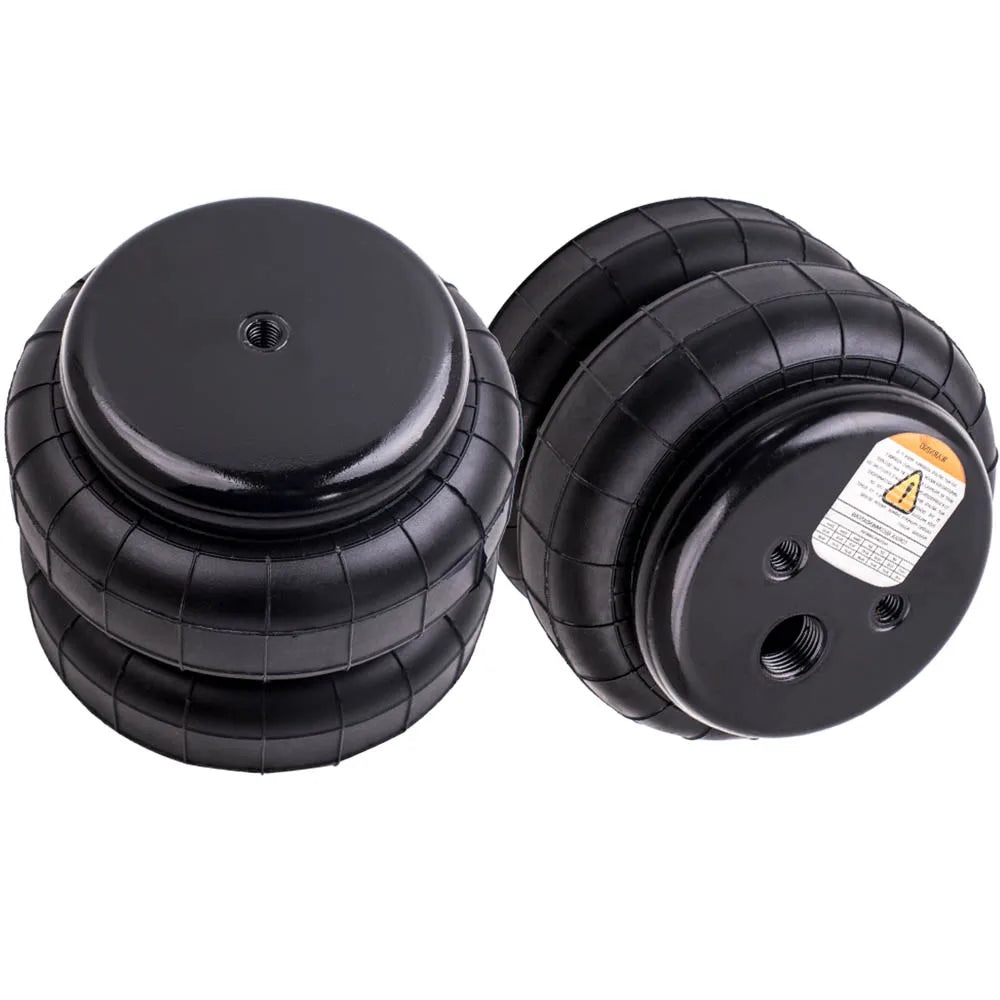

Universal Air Suspension Bags for Ford F150/F250, for GMC Sierra, for Chevrolet Silverado, for Dodge Ram 1500 2500 3500, etc
(Fits for most brand trucks)
Item Specifications:
Condition: 100% Brand New
Loading cap. at 3.0bar:2.88KN
Loading cap. at 7.0bar:7.25KN
Placement on Vehicle: Left,Right,Front,Rear
Air spring bag capacity: 2500LBS
Min height: 72mm±5mm
Max height: 218MM±5mm
Working stroke: 146mm±5mm
Single air port size: 1/2NPT
Air fitting elbow connector: G1/2-φ6(male)
Install hole size: 3/8-16UNC
Top plate diameter:113mm
Air spring bag body diameter:148mm±2mm
Quantity: 2 pieces in one set. (for rear / front left or right)
Warranty:2 Years Warranty for any manufacturing defect.
Features:
- Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
- Hold up to 350 PSI
- Test more than 3 million times
- Air Tightiness testing
- Gives the driver more control of ride
- Built to strict quality control standards
- Designed for Comfort Suspension
Notice
- These air suspension bags are aftermarket ones. They will replace the original air spring bags.
- Please doublecheck the picture and drawing carefully before purchasing to ensure you will get the right struts.
-Instruction is not included. Professional installation is recommended
-Contact us please for whatever we can help
