SPECIFICATIONS

Brand Name: Daiertek

Hign-concerned Chemical: None

Item Type: Battery Switch

Year: 2024

Material Type: copper

Special Features: Controls circuit disconnection by magnetic principle

Model Name: RL-240A-RCM3-VD

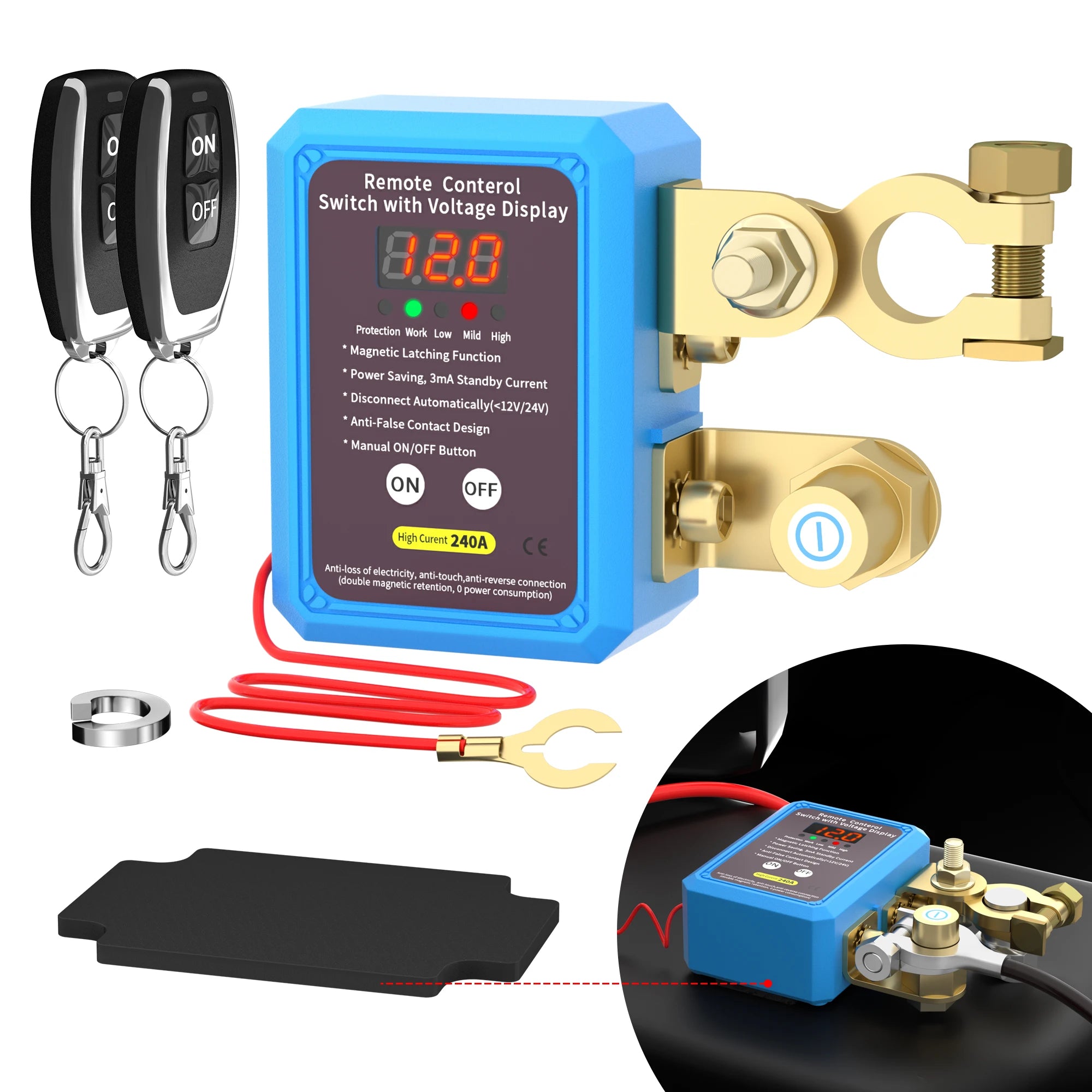

DaierTek 240A Kill Switch 12V Remote Battery Disconnect Switch with Led Voltage Display Automatic Power Shut Off Switch for Auto

About this item:

【Specifications】Battery disconnect switch rated current: 240A, rated voltage: 12V, standby current: 3mA, instantaneous current: 500A.

【Magnetic Latching Function】This kill switch for car uses a new type of relay that controls circuit disconnection by magnetic principle, with a standby current of 3mA, which is more energy-saving.

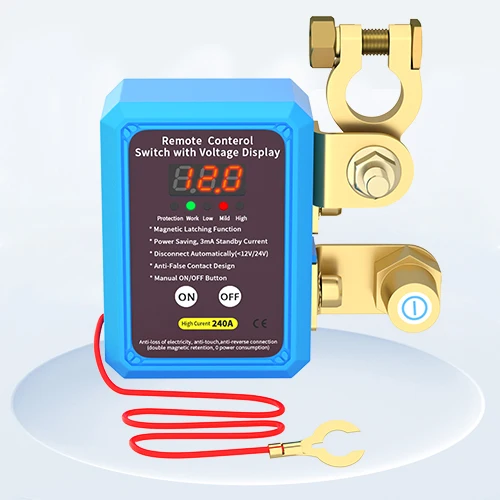

【Intelligent Led Voltage Display】The LED voltage display detects the battery voltage at any time, if the voltage is lower than 11.8V, the remote kill switch will automatically cut off the power supply after 120s to save electricity. If the voltage is higher than 13.2V, the remote control will be disabled to prevent accidental action to turn off the power while driving, and the power supply can only be controlled by the button on the switch.

【Easy Installation】The power shut off switch uses a negative connection to ensure stable performance. Please remember to turn off the power before installation.

【Protect the Battery】Using this wireless car battery kill switch can avoid hidden additional power consumption due to long-term parking, aging of electronic equipment, line aging, forgetting to turn off the light, etc. It can effectively protect and prolong the life of car battery.

Battery Shut Off Switch

Specifications：

Voltage Rating: 12V/24V

Current Rating: 240A

Instantaneous Current: 500A

Standby Current: 0.003A

Operating Temperature: -20℃ to 90 ℃

Application:

Long-term parking, power consumption of electronic devices, line aging, forgetting to turn off lights, etc. Disconnect Switches can solve the power consumption caused by such problems, and can extend the battery power and service life of cars.
