MaXpeedingrods coilover offer excellent, versatile performance, durability and ride comfort over all road conditions. Featuring 24 levels of damping adjustment, the damper can be easily accessed and adjusted via a knob at the top of the damper mount.
Simple adjustments can be made to tune to your desired style of driving and comfort level that you desire. This allows you to preset to soft damping for your daily drive and switch to hard damping for track days.
Features

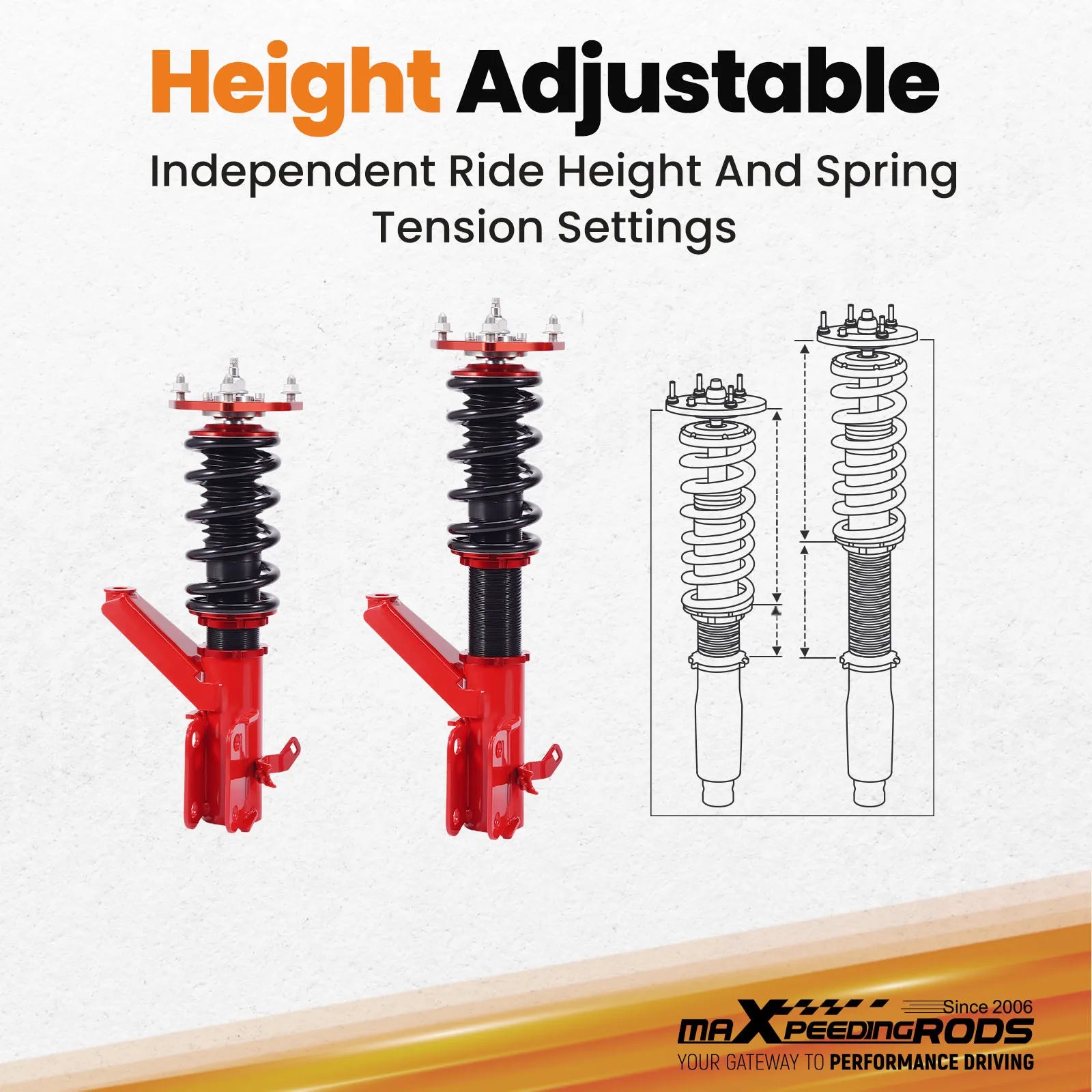

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.
- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

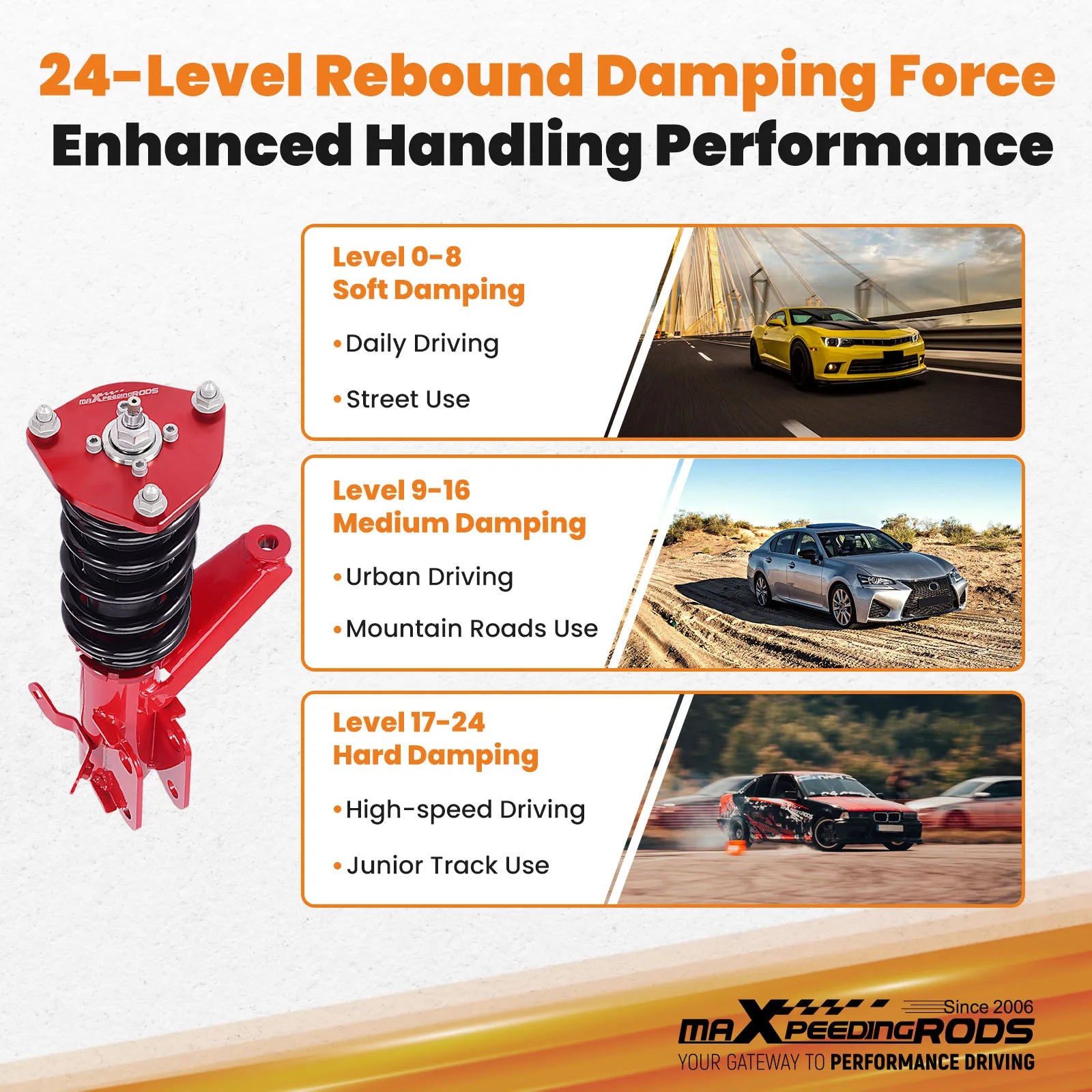

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.
- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.
- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.
- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars.

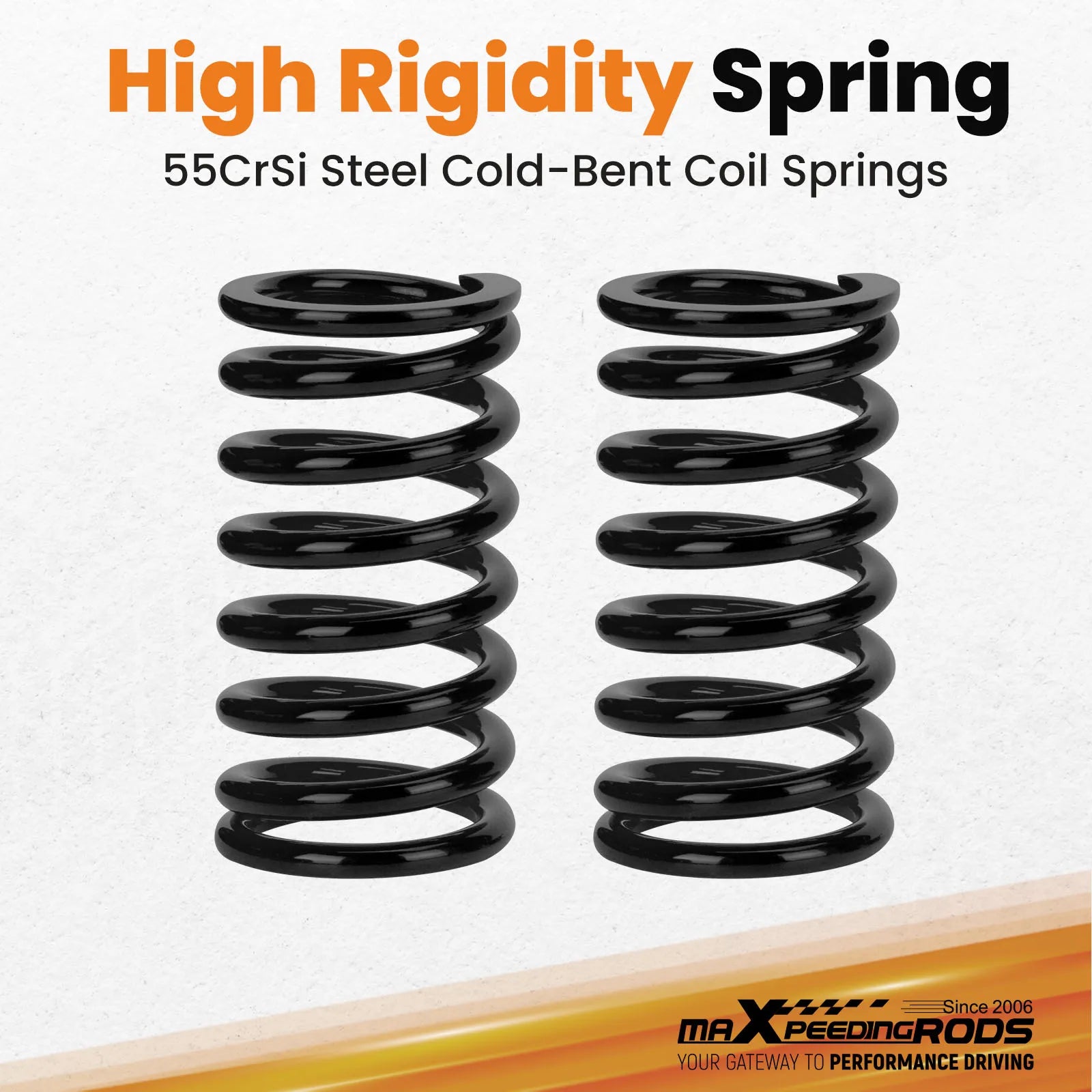

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.
- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.
Application
For Acura RSX & Type-S 2002-2006
For Honda Integra DC5 2001-2006
Specification
- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Coilover overall length Front: 450mm-580mm
- Coilover overall length Rear: 355mm-410mm
- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ50mm (1.97")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 180 mm
- Spring length Rear: 140 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring

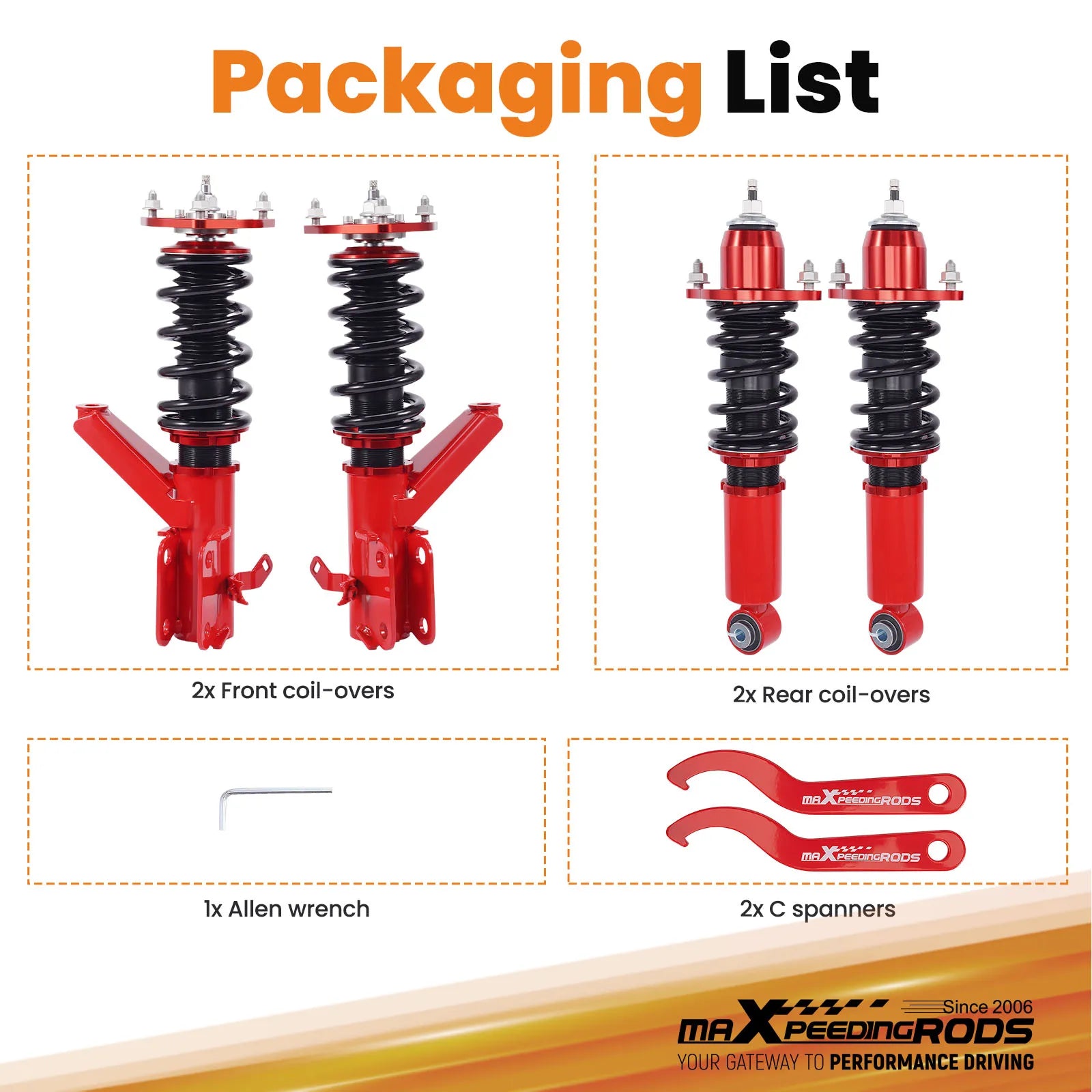

Package included
1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment
