SPECIFICATIONS

Brand Name: Bymaocar

High-concerned chemical: None

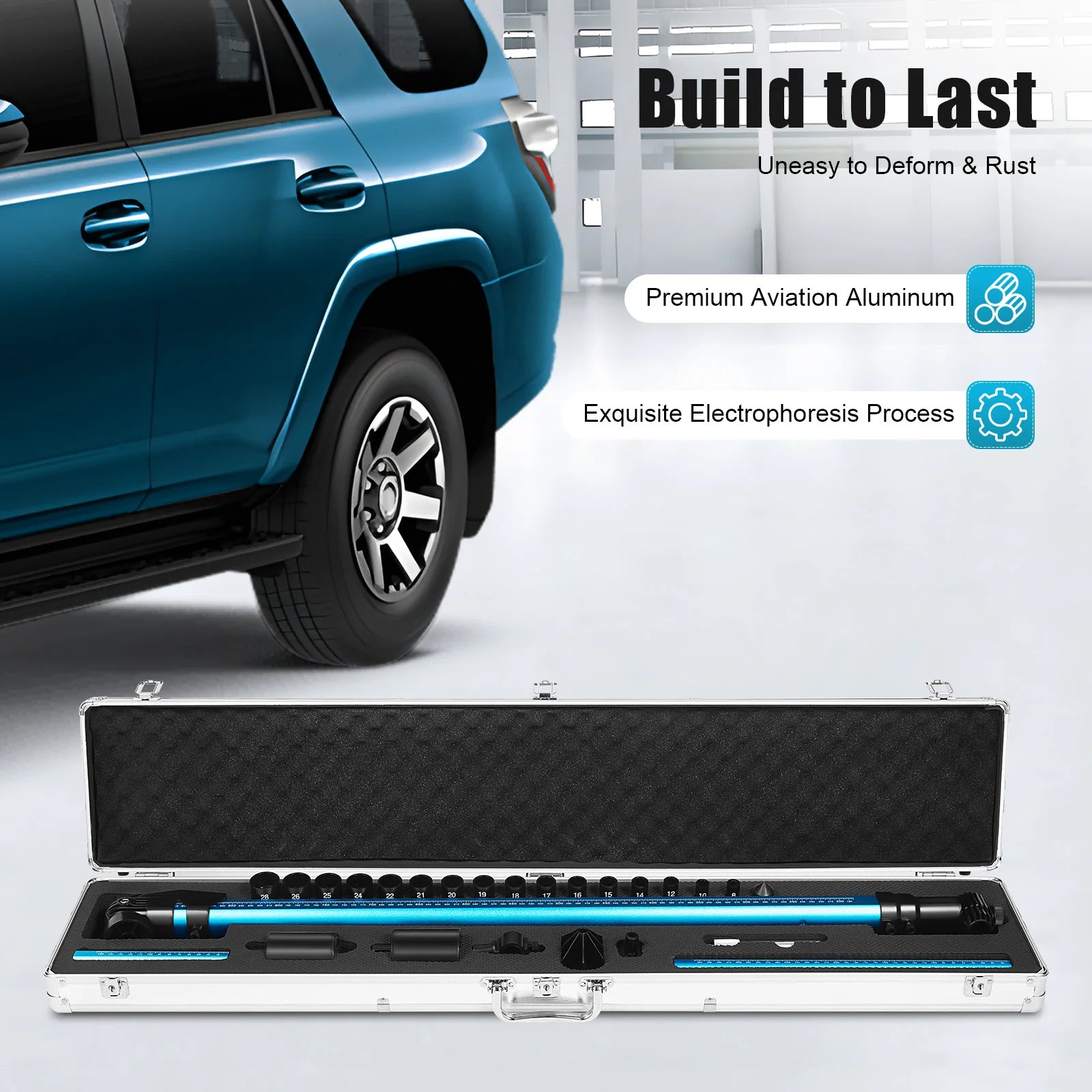

Material: Aviation Aluminum

Meterial of Sheet Metal Ruler: Copper Alloy

Process: Electrophoresis

Style: Modern

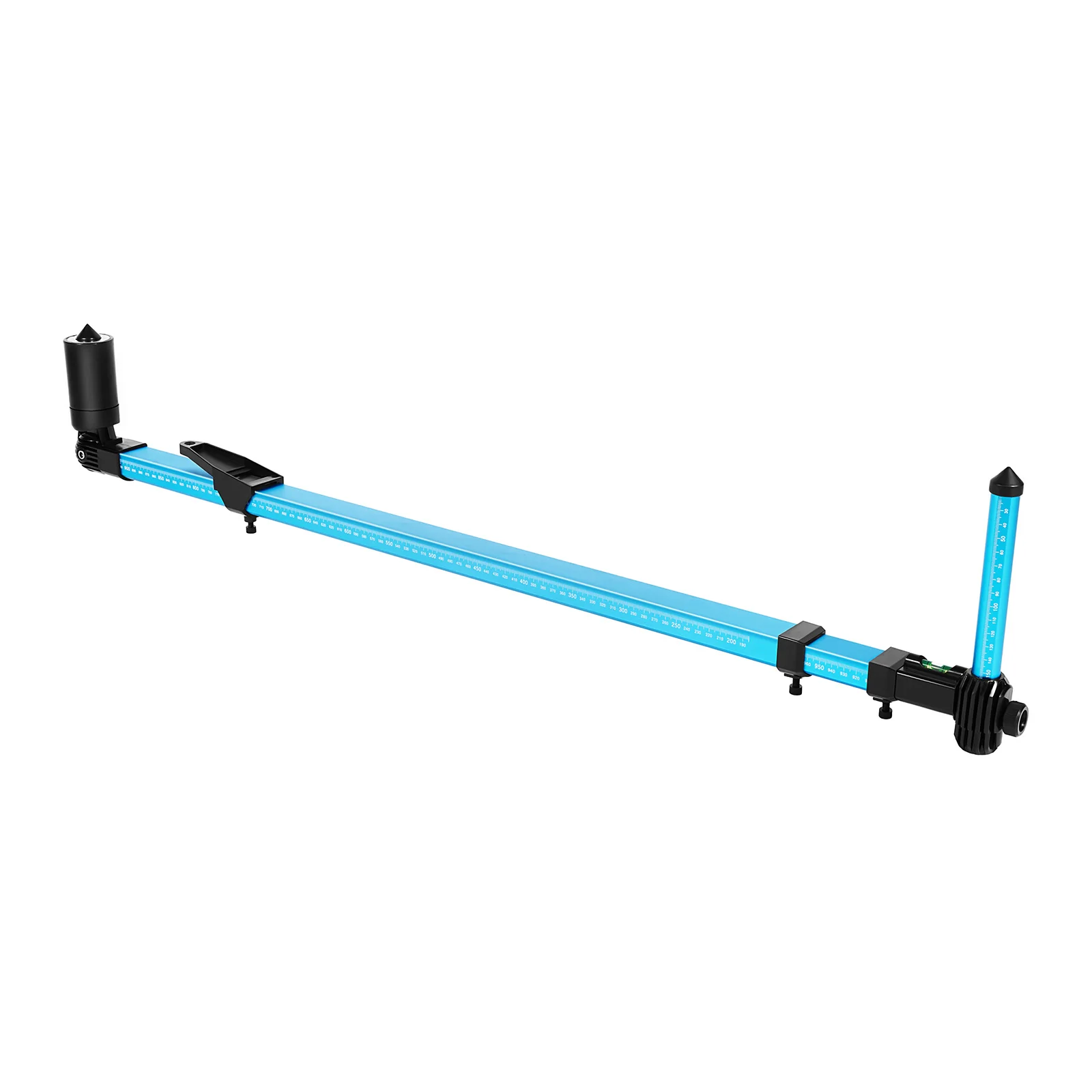

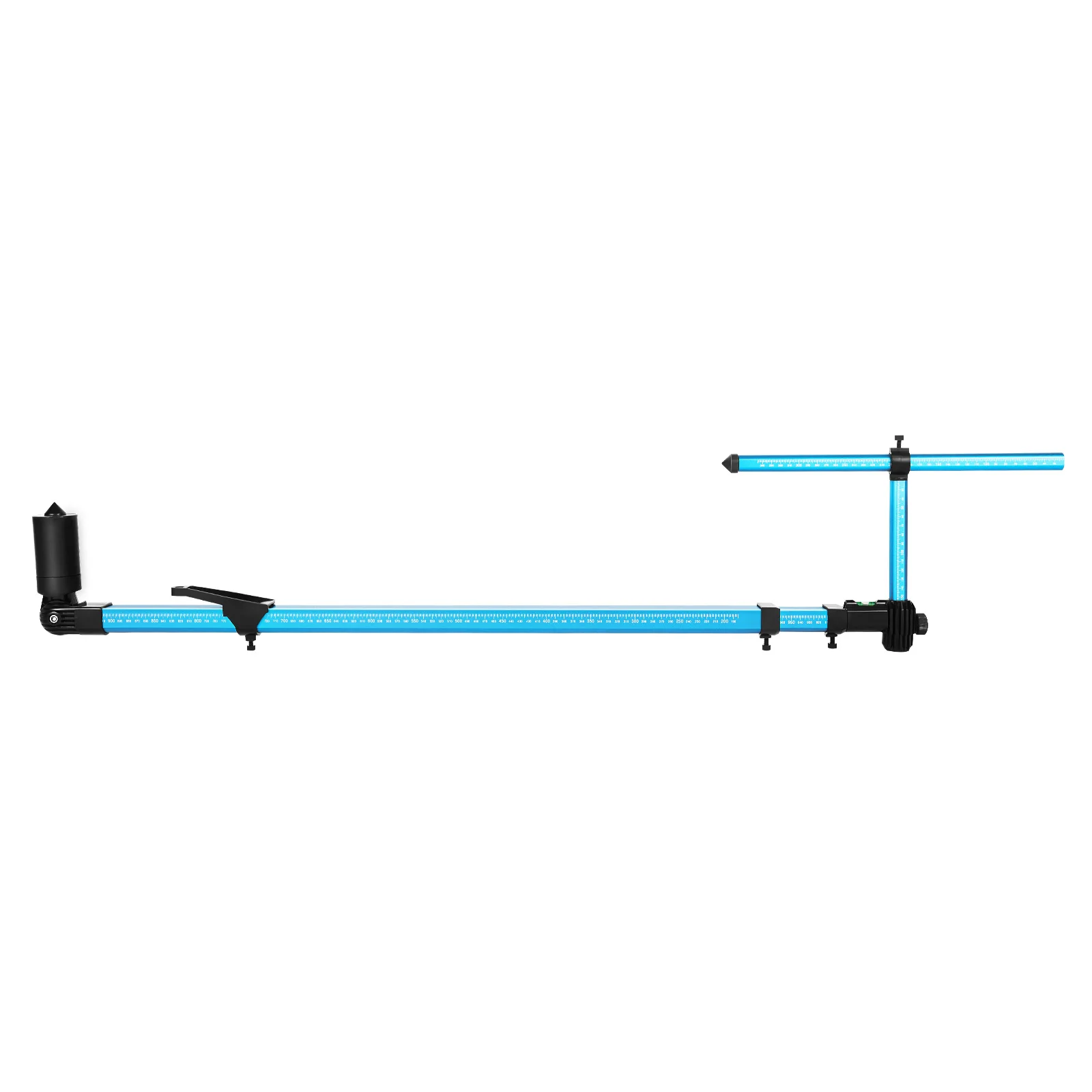

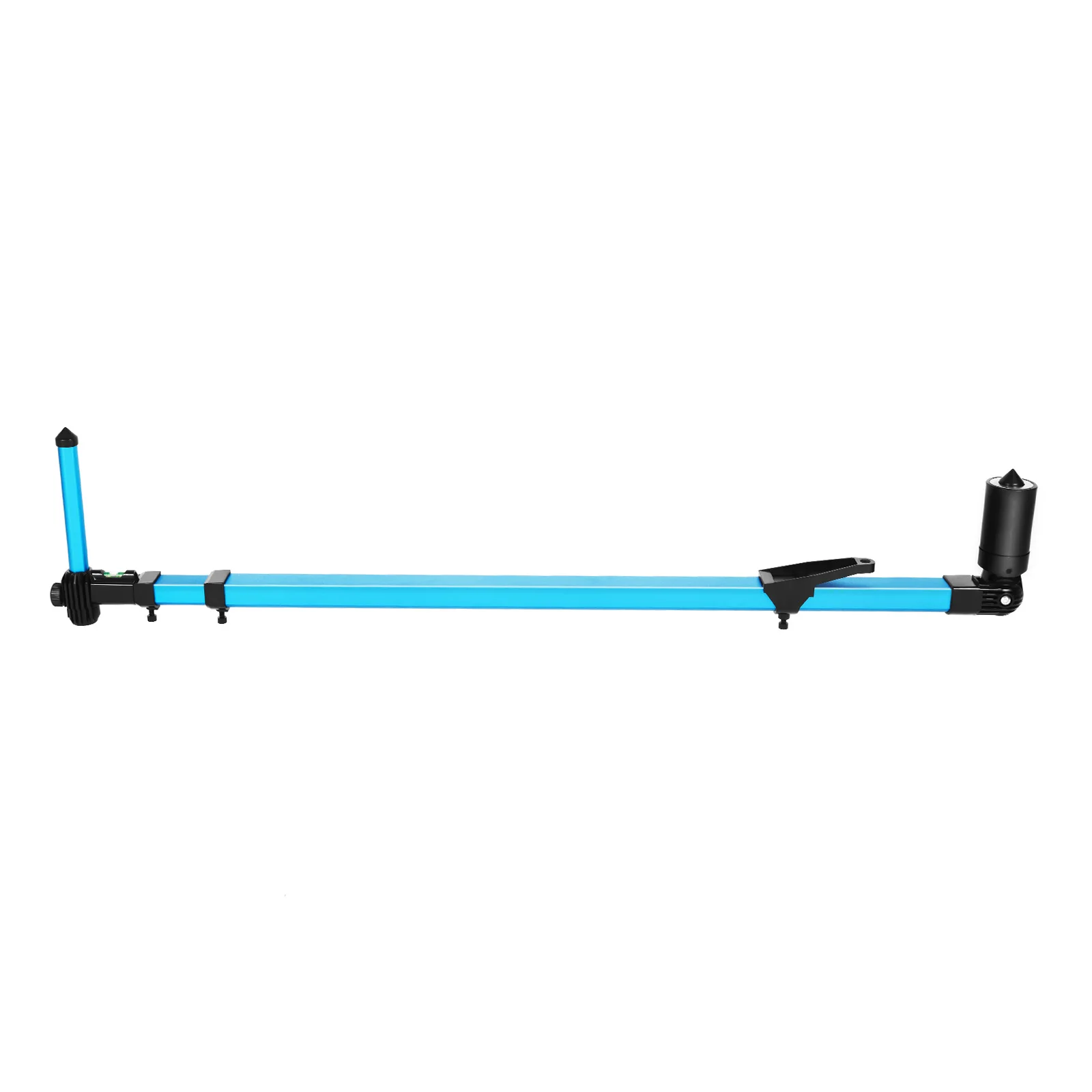

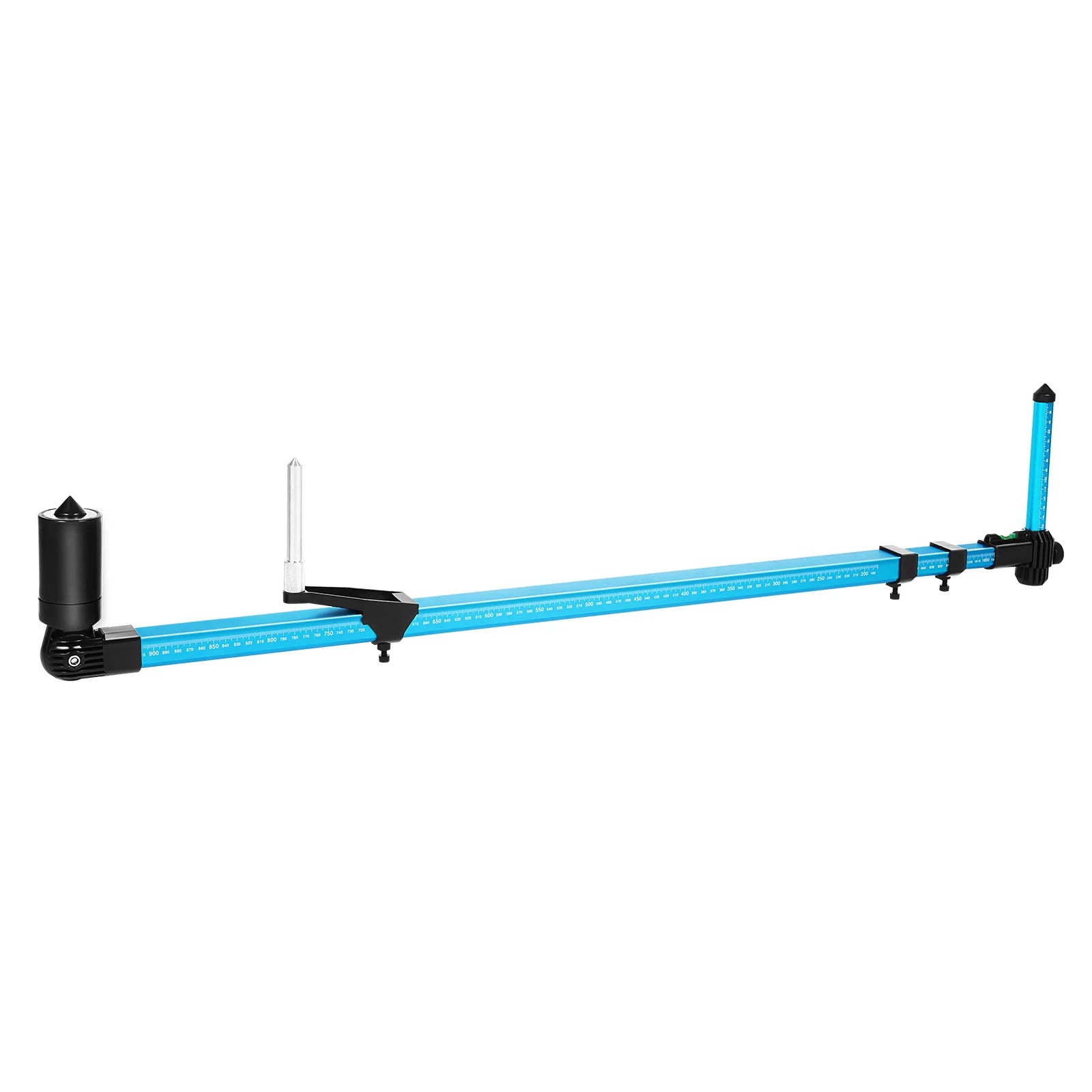

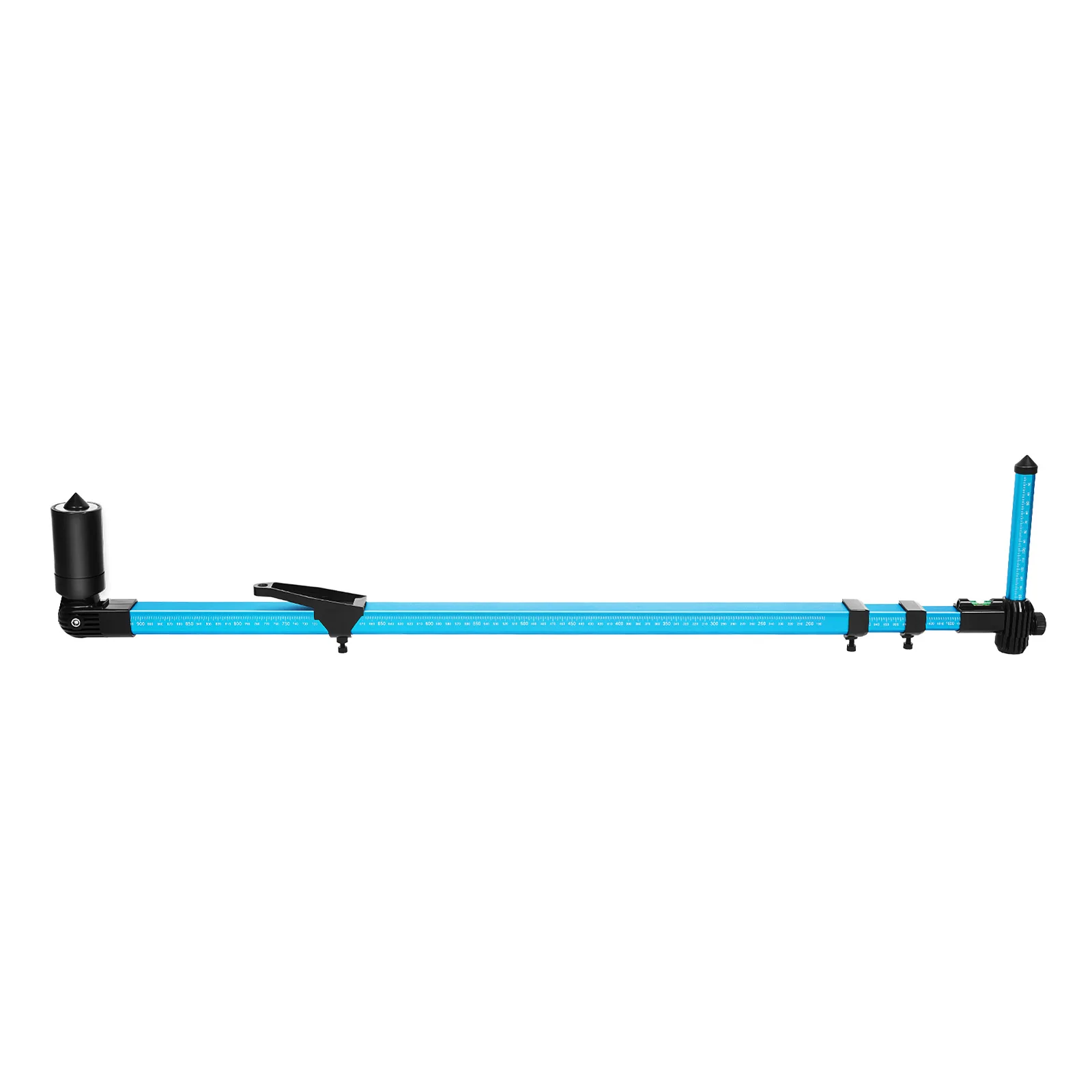

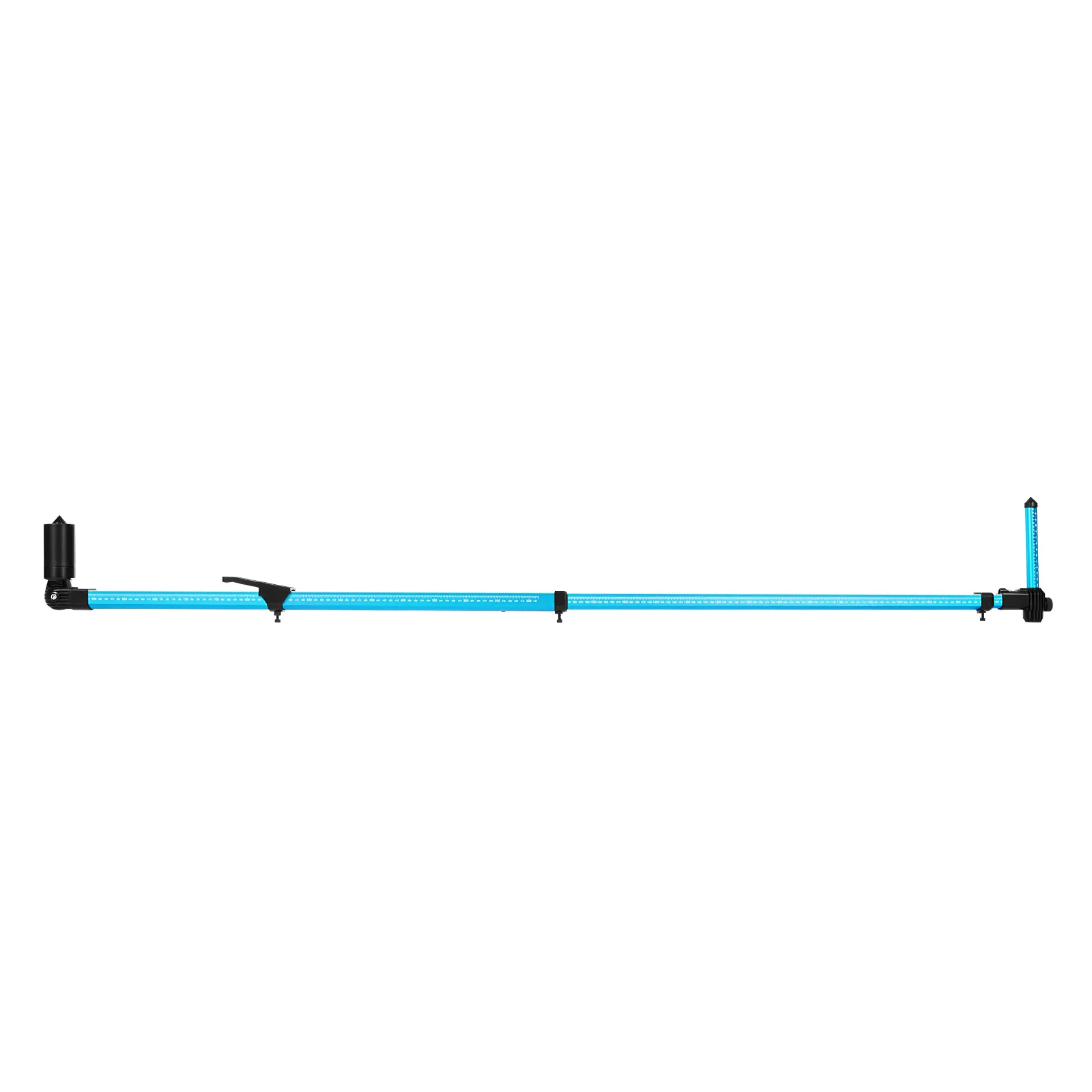

High Precision 2D Measuring Ruler, Automotive Chassis Measuring Tool With Level Display & CD, for Vehicle Chassis Inspection

Application

It can measure many parts such as the vehicle chassis, doors, windows, trunk, engine compartment, wheelbase, and so on.

Details

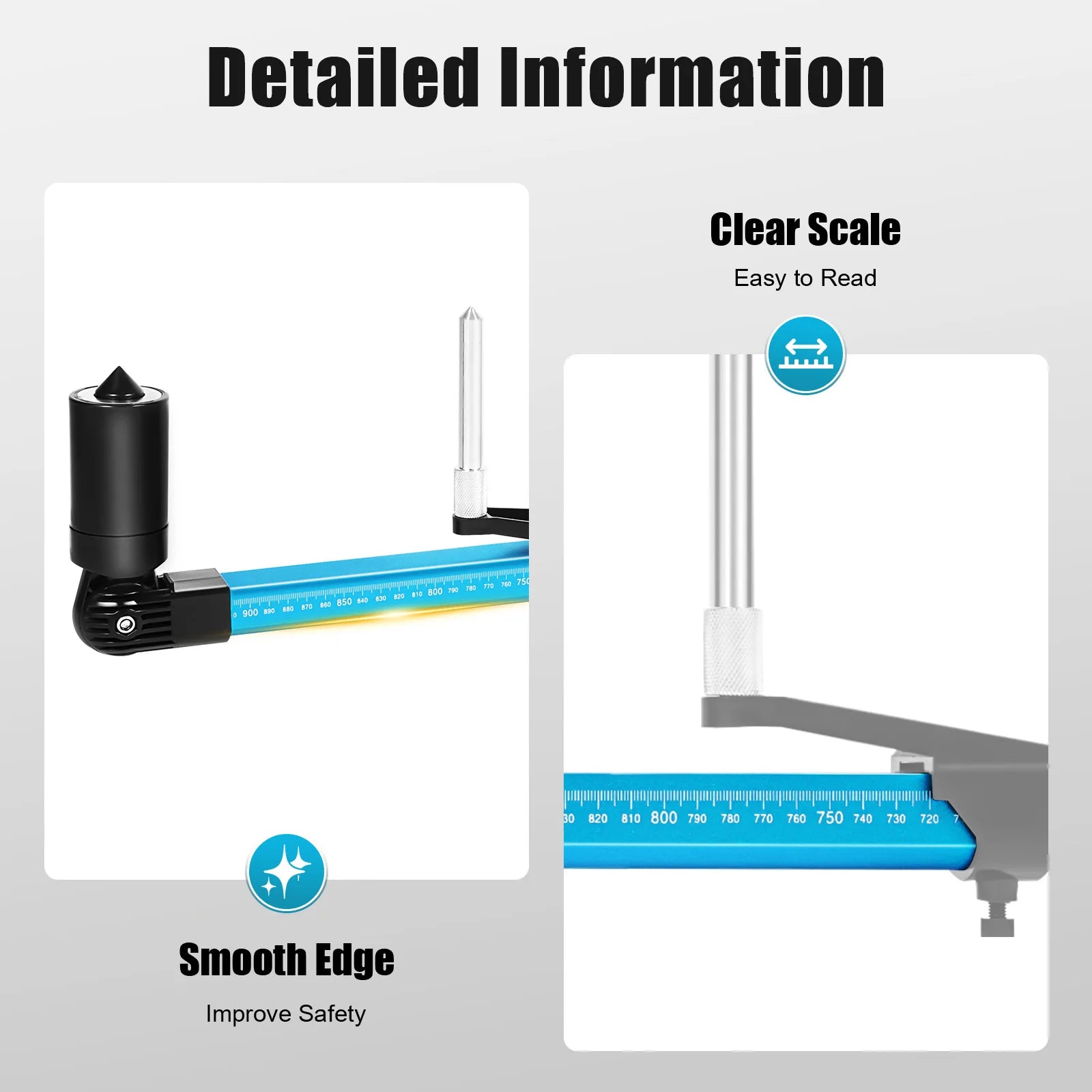

🥇Smooth Edges: They improve safety during use without scratching your hands or car body.

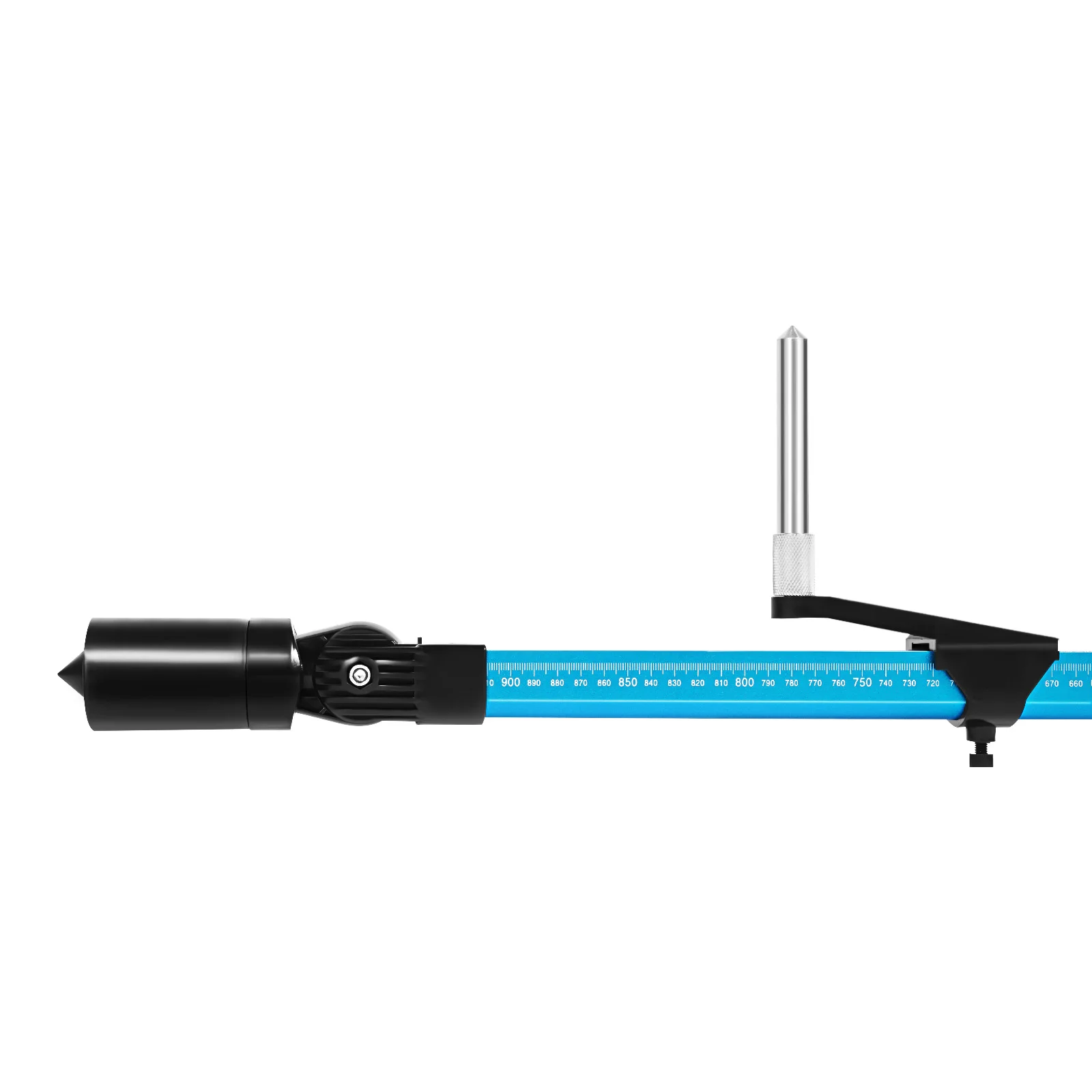

🥇Clear Scale: The clear scale allows you to take quick readings and facilitates your measurement work.

How to Use

1. When measuring small dimensions up to 35.43in, a drawing-measuring ruler is not required. Use the slide rule according to the position of the distance measuring point.

2. The level (level in the level display) displays the measured value. Read the measurement reading on the slider.

3. When measuring dimensions of approx. 70.87in, use the stretched inner bar and measure according to the level displayed on the level meter. The measurement reading is read on the slider holder. Smoothly pull the scale (at the level shown on the level meter) during the measurement.

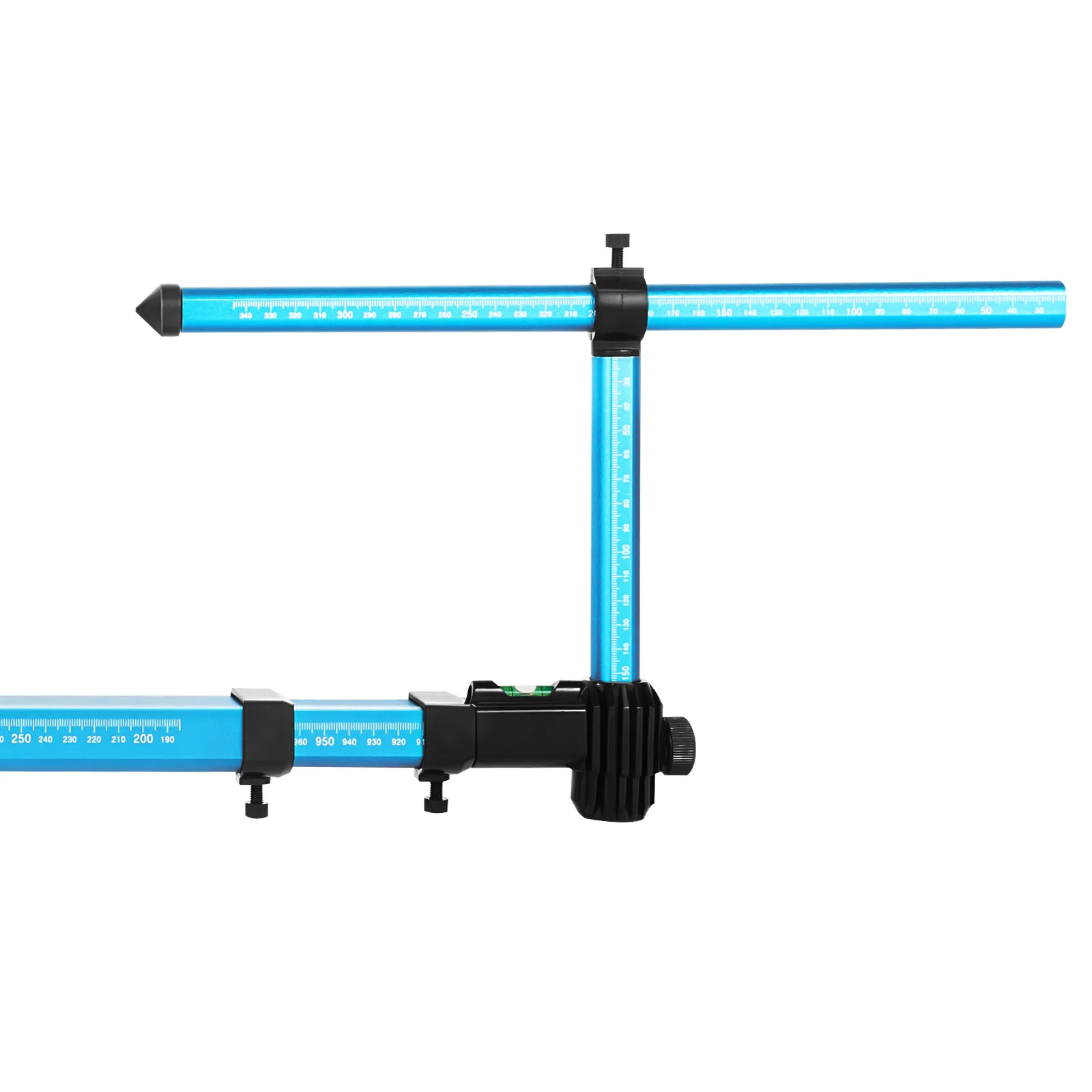

4. The vertical scale is located directly at the point of measurement, is adjustable up and down, and is screwed in the vertical position to maintain the level (at the level shown on the level meter).

Specifications

Material: Aviation Aluminum

Process: Electrophoresis

Style: Modern

Color: Blue, Black

Assembly Required: Yes

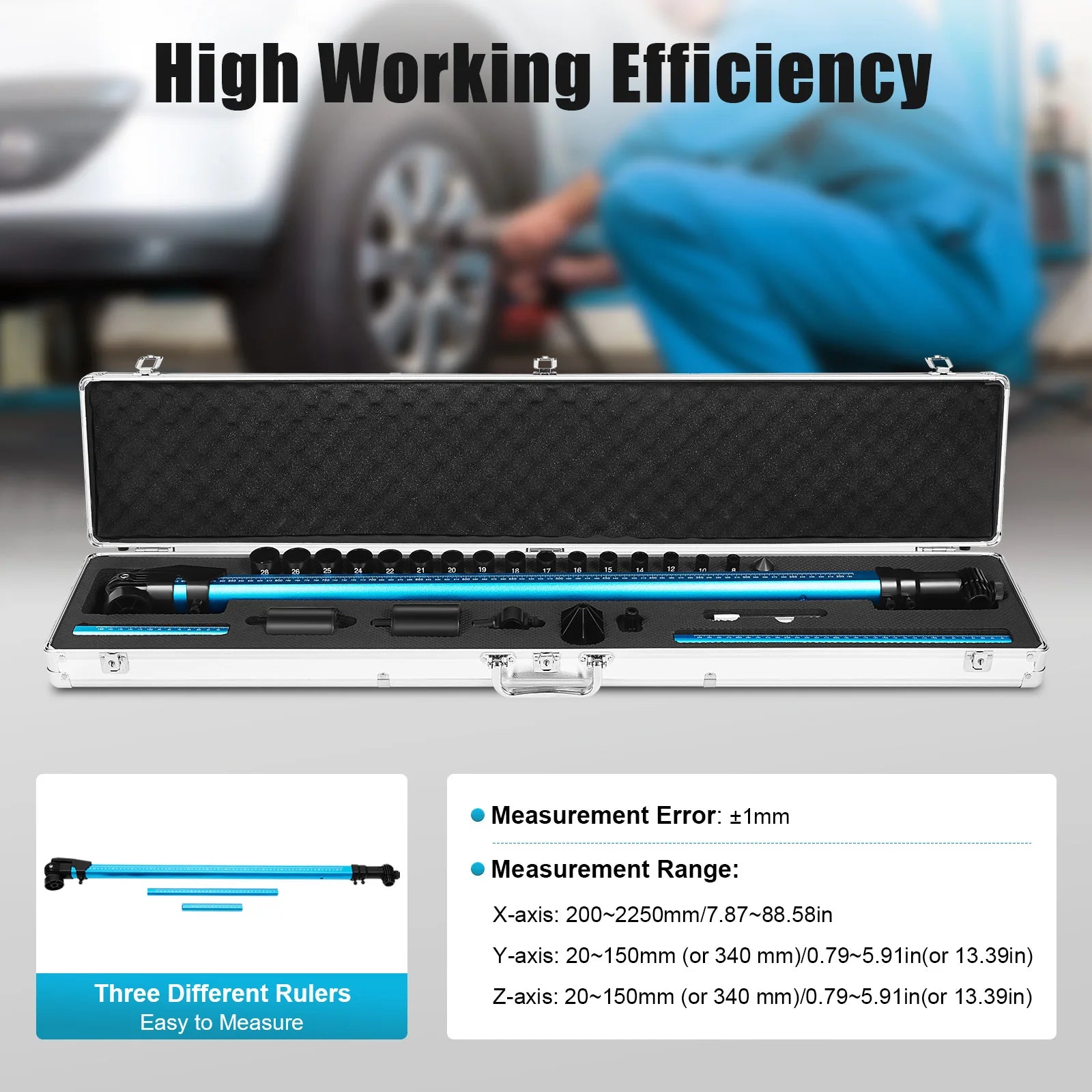

Measurement Error: ±1mm/0.04in

Measurement Range:

X-axis: 200~2250mm/7.87~88.58in

Y-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)

Z-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)

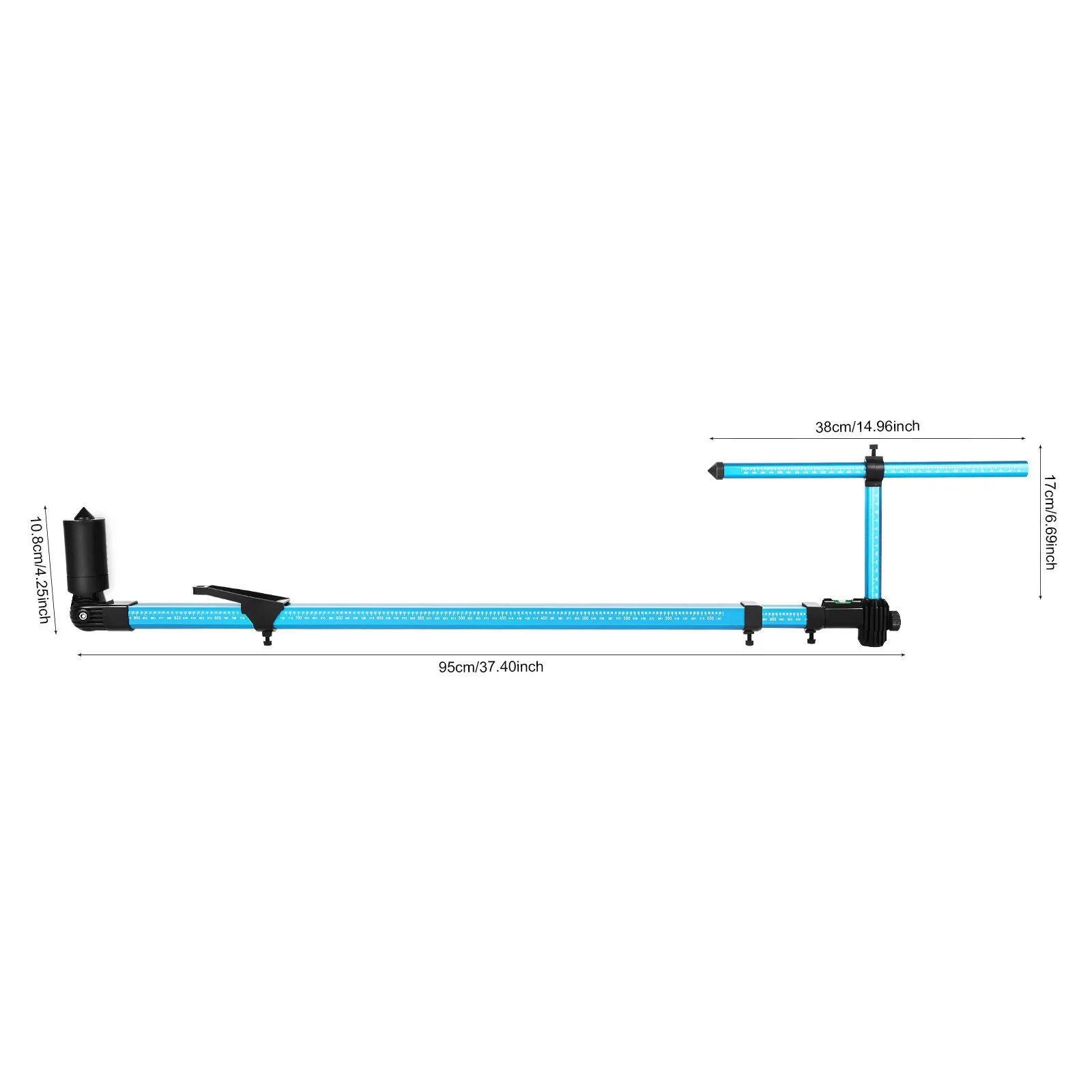

Scale Length: 95cm/37.4in; 38cm/14.96in; 17cm/6.69in

Package Size: 21*102*10cm/8.27*40.16*3.94in

Gross Weight: 4.2kg/9.26lbs

Net Weight: 3.5kg/7.72lbs

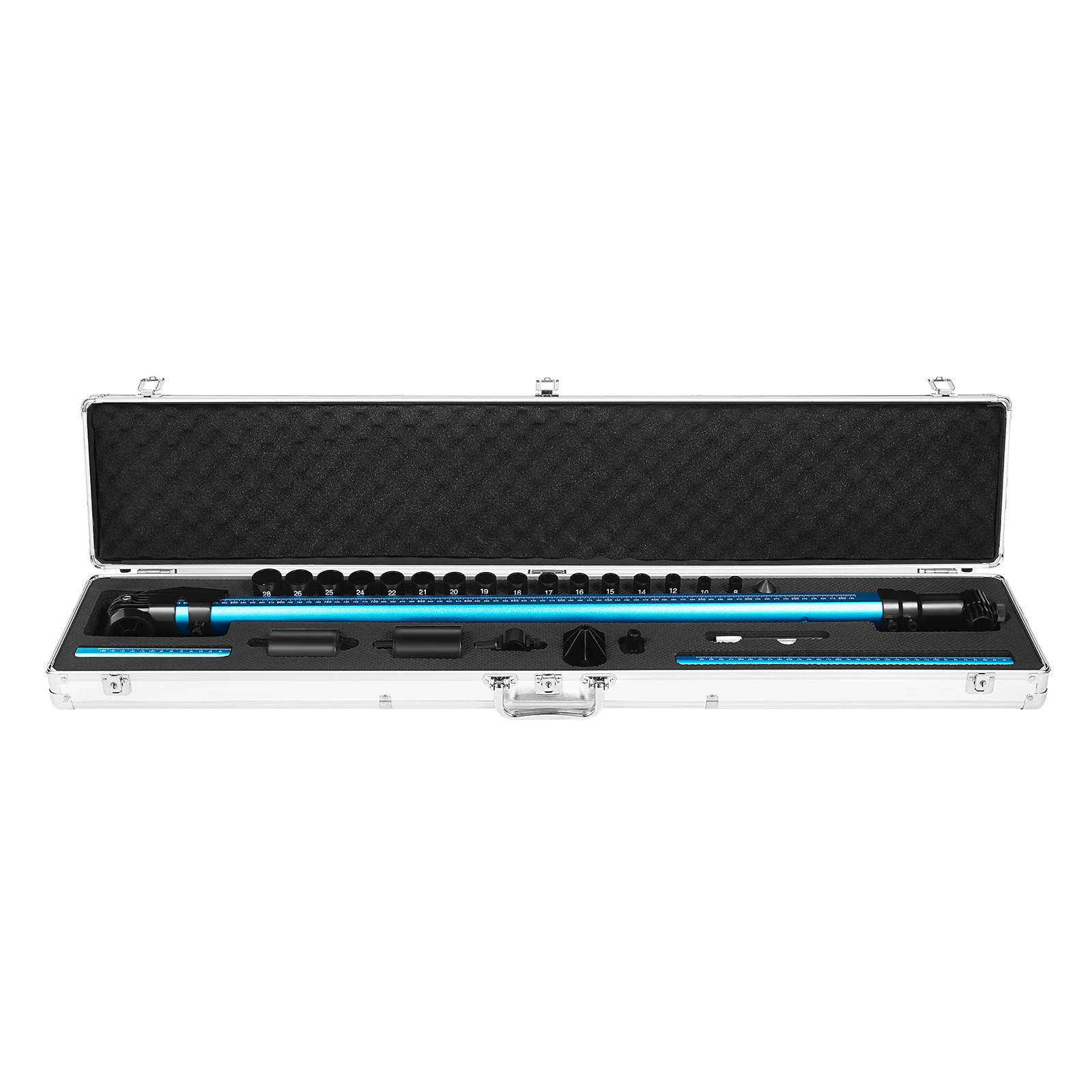

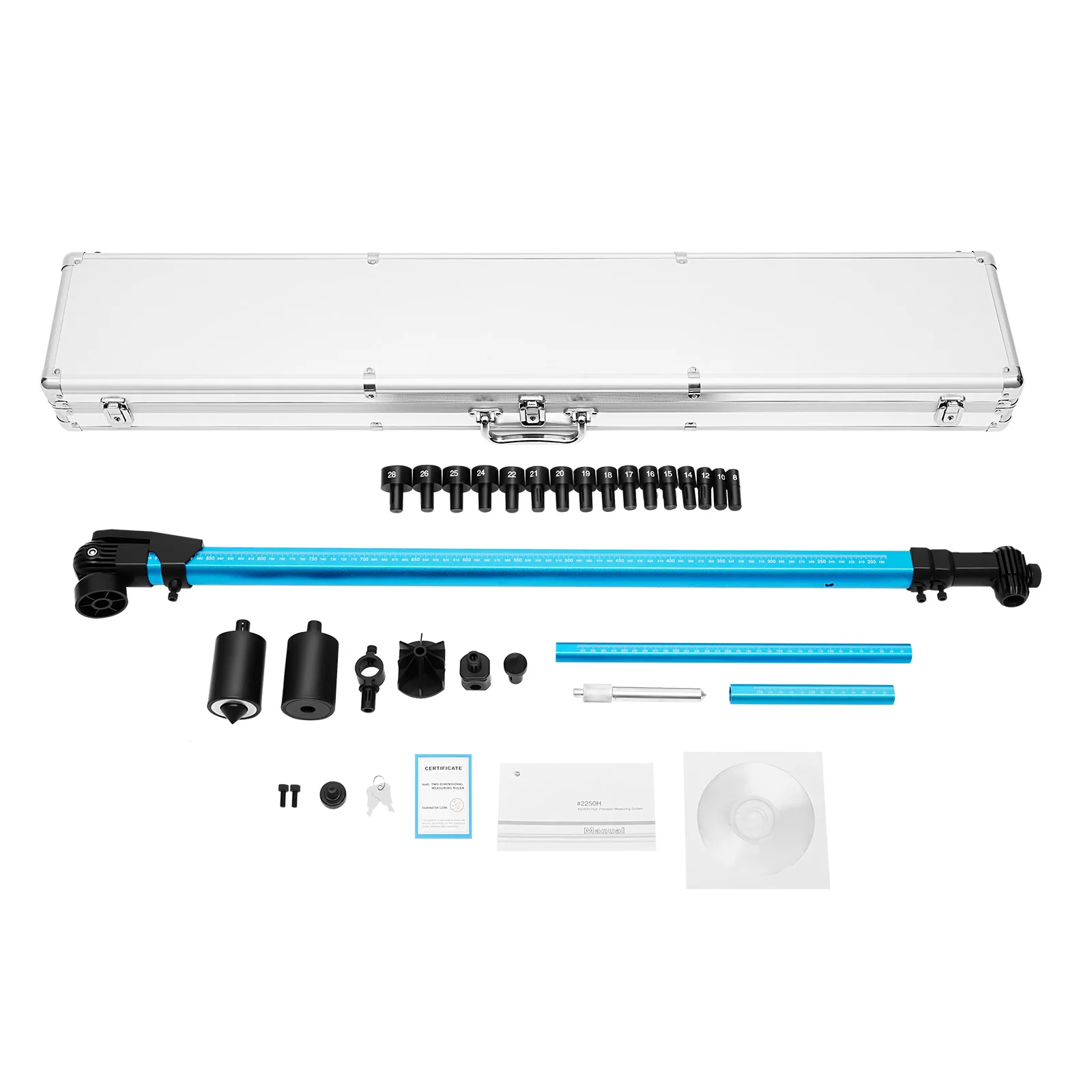

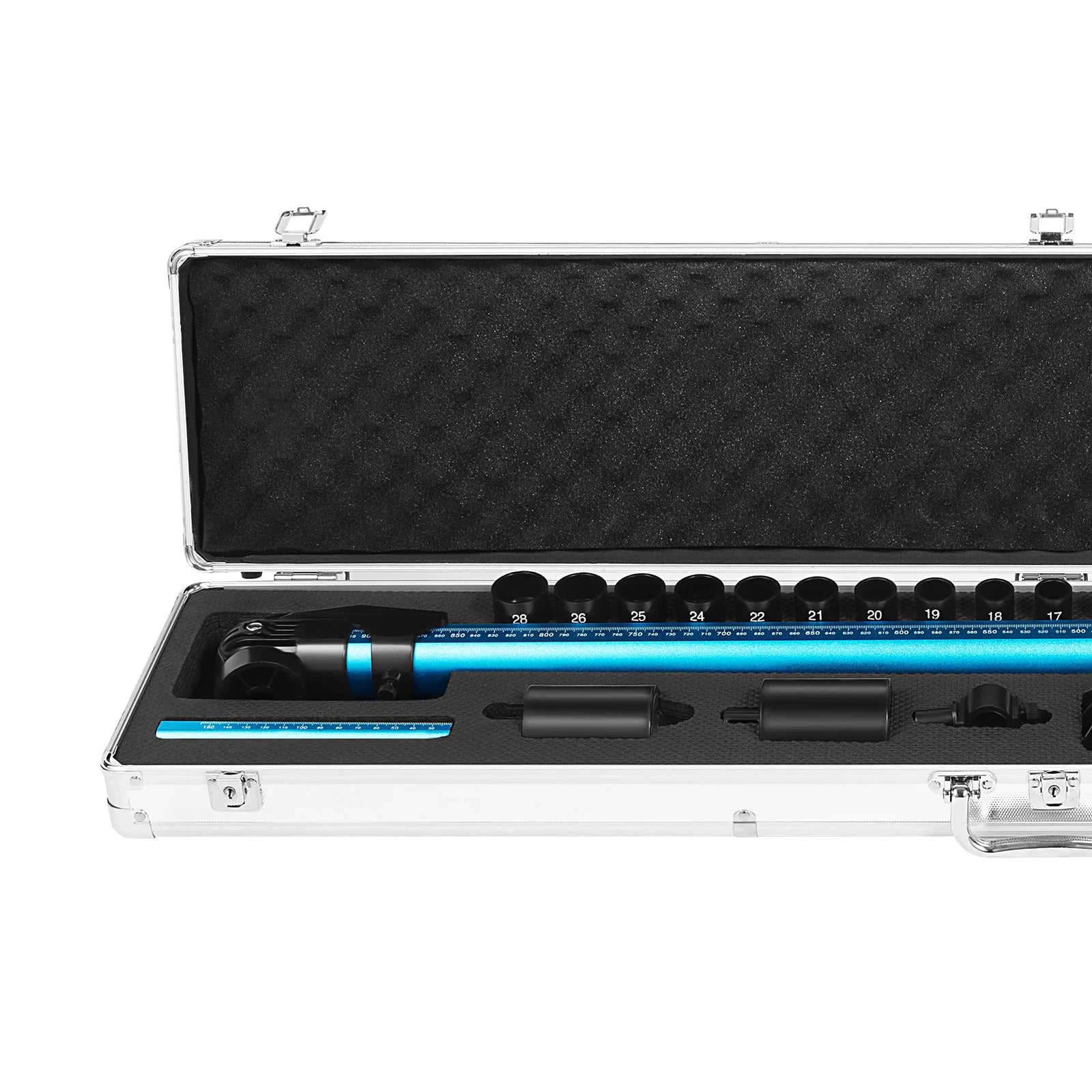

Package Included

1Set * High-precision 2D Measuring Ruler System

1* CD

1* Chinese & English Manual

All Accessories for Assembly

Notes

1. Please double-check the size before ordering.

2. Please read the instructions before use to ensure that the measuring ruler can be used correctly.

3. Please note that this product is made of aluminum and should be handled with care when in use. It is strictly forbidden for heavy objects to touch.

4. Please do not come into contact with fire, rubber water, asphalt, and other corrosive substances. In case of inadvertent contact with paint and other liquids, please rinse it off immediately with a small amount of water and wipe the measuring tape clean.

5. Please note that the magnetic probe of this product will tilt after use, please do not pull it out vertically to avoid injury.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
