SPECIFICATIONS
Brand Name: OBDSTAR
Electronic: No
External Testing Certification: CCC
Hardware Version: p50
High-concerned chemical: None
Is Batteries Included: Yes
Item Height: 9
Item Length: 1
Item Weight: 1.1
Item Width: 10
Material: plastic
Model Name: SR27
Origin: Mainland China
Power (W): 12
Software Version: p50
Voltage: 8

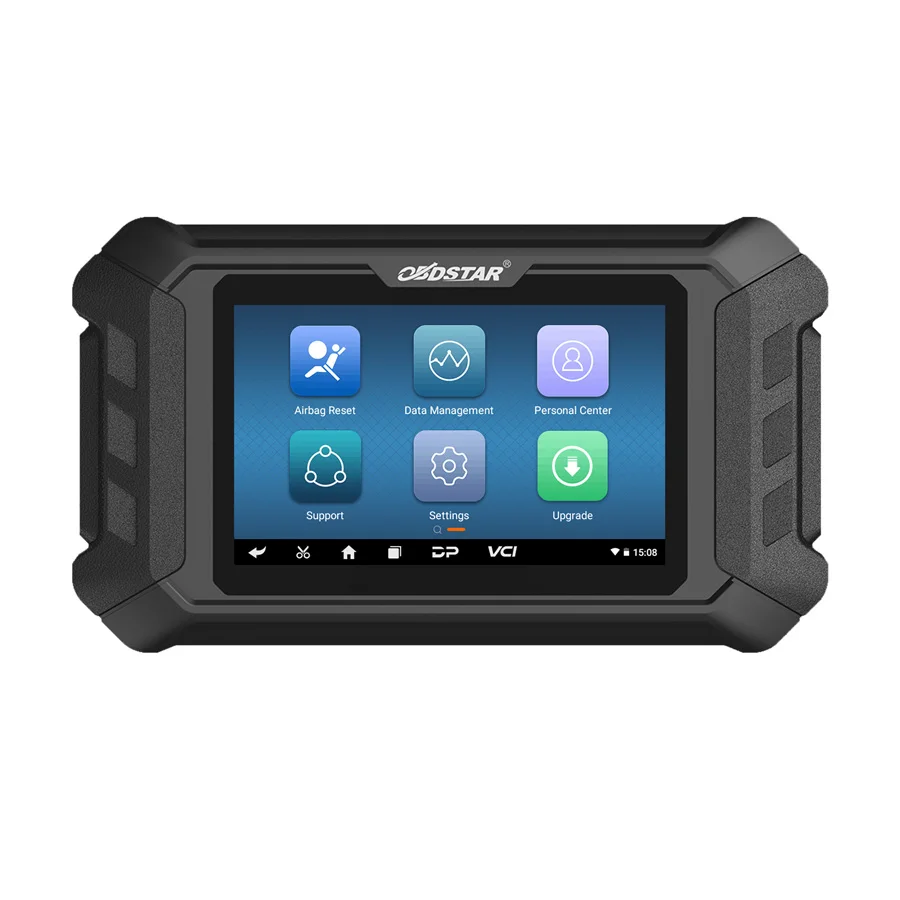

OBDSTAR P50 Airbag Reset Intelligent Airbag Reset Equipment
Description:
OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 77 brands and over 10500+ ECU part No., some MCU. OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.
OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 77 brands and over 10500+ ECU part No., some MCU. OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.
OBDSTAR P50 Functions:
1. Support one-click airbag reset for 86 brands and over 11600+ ECU part No.
2. Support fuzzy search for ECU part No.
3. Contain clear BENCH mode wiring diagram
4. Contain powerful and complete description files for fault code
5. P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.
6. Supports battery reset(MVBM) function
7. Supports SAS reset function
Notice:
1. Language: English Only.
2. If you also need Cluster Calibration & Oil Light/ Service Reset Function, you can buy the OBDSTAR Odometer Reset Oil Service Reset Function Authorization to get the same function as the OBDSTAR ODO Master.
3. OBDSTAR P50 with One Year Free Update Online, after one year, please click OBDSTAR P50 Update Service
5. P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.
6. Supports battery reset(MVBM) function
7. Supports SAS reset function
Notice:
1. Language: English Only.
2. If you also need Cluster Calibration & Oil Light/ Service Reset Function, you can buy the OBDSTAR Odometer Reset Oil Service Reset Function Authorization to get the same function as the OBDSTAR ODO Master.
3. OBDSTAR P50 with One Year Free Update Online, after one year, please click OBDSTAR P50 Update Service

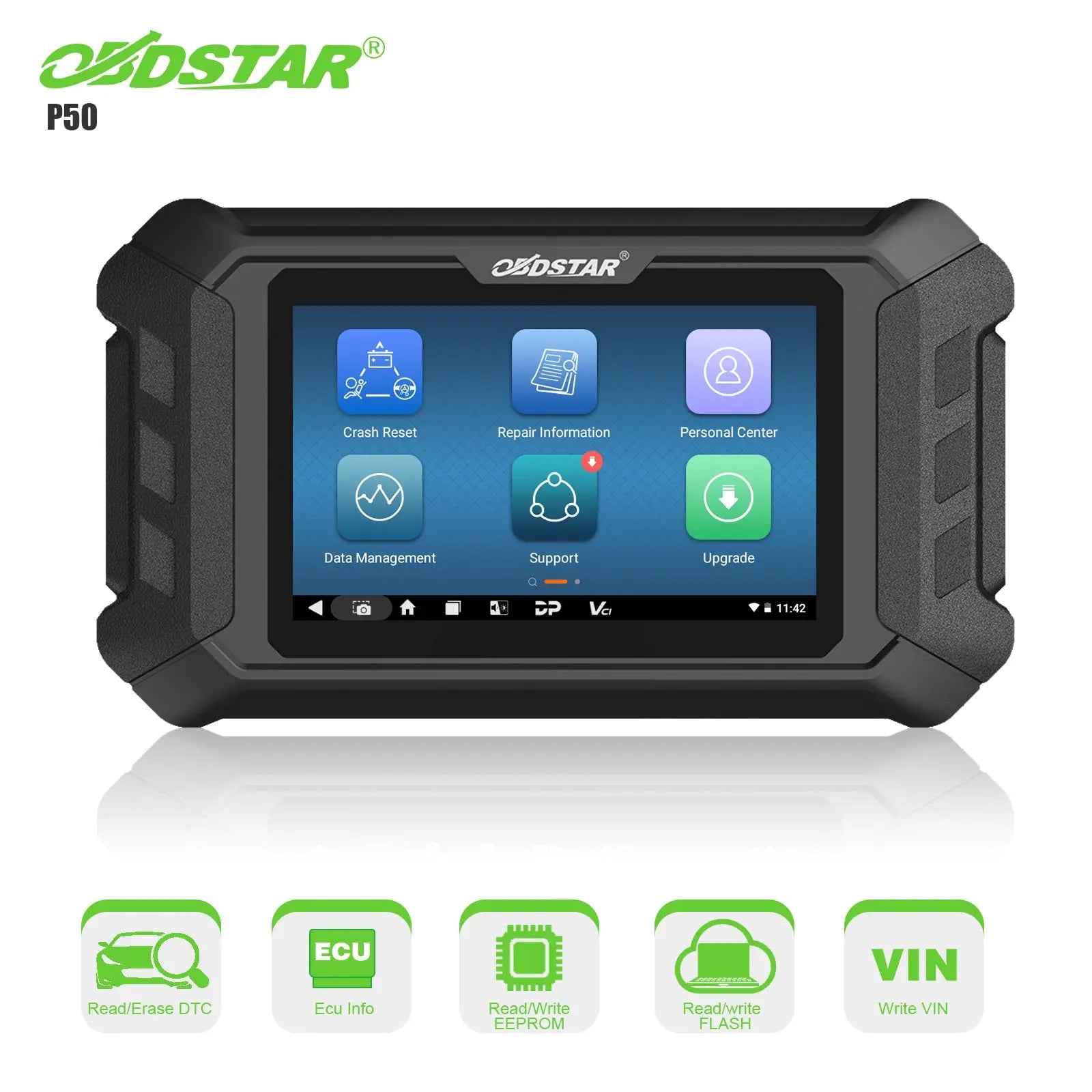

Advanced Functions:
All by OBD or BENCH
ECU Info.
Read DTC
Erase DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH
Erase Crash
Write VIN
P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS Protocol at the same time;
4. Optional CANFD adaptor (Mainly used for models after 2020, such as for HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. DB15 connector can communicate with any OBDII-16 I/O interface.
P50 Airbag Reset Latest Update Information:
P50 Airbag Reset Upgrade
Add for TOYOTA R7F7016443, R7F7016843 crash record erase and repair
(All by bench, need to use with CANFD Adapter)

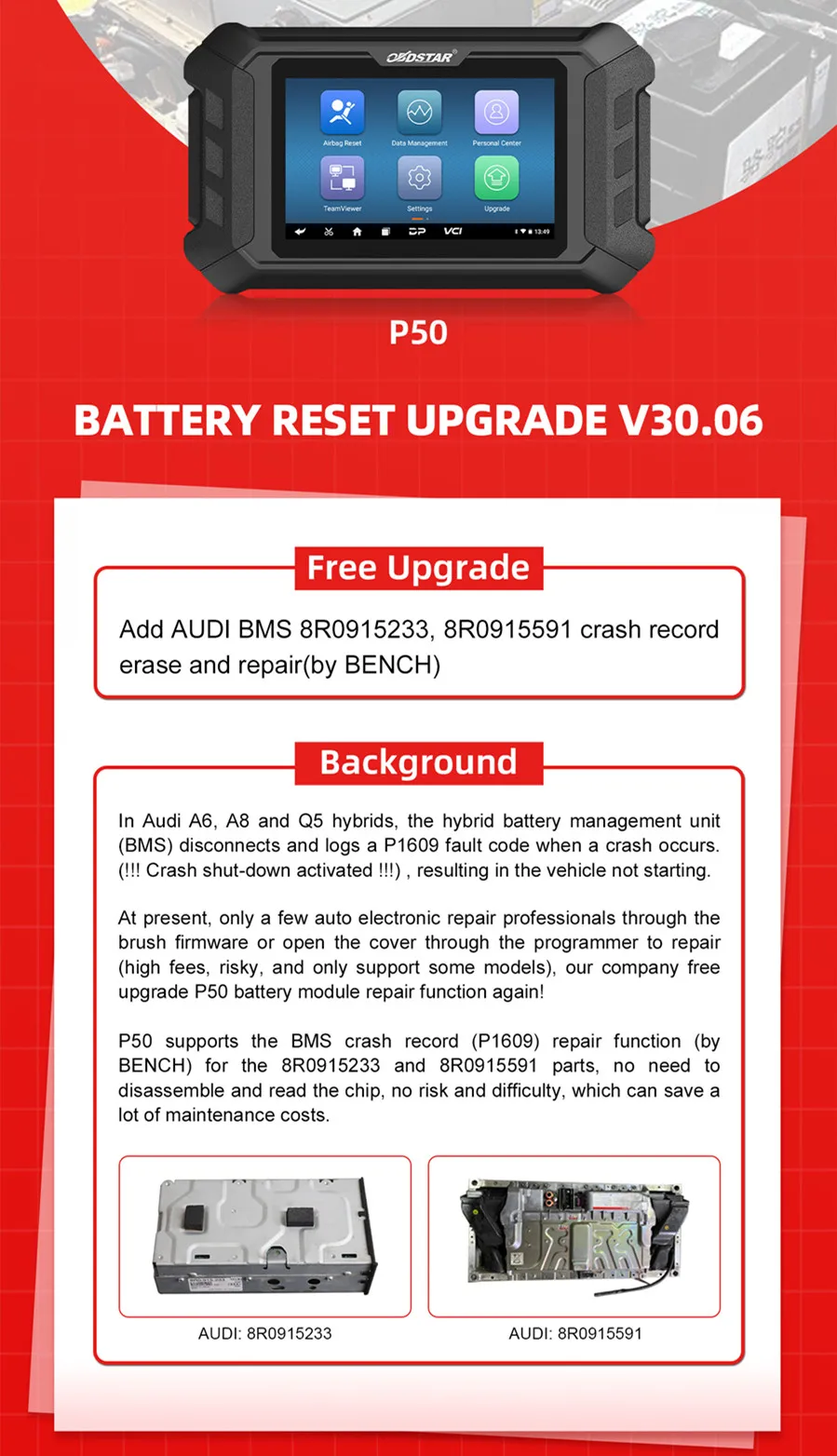

P50 BATTERY RESET UPGRADE V30.06
Add for AUDI BMS 8R0915233, 8R0915591 crash record erase and repair ( by BENCH )

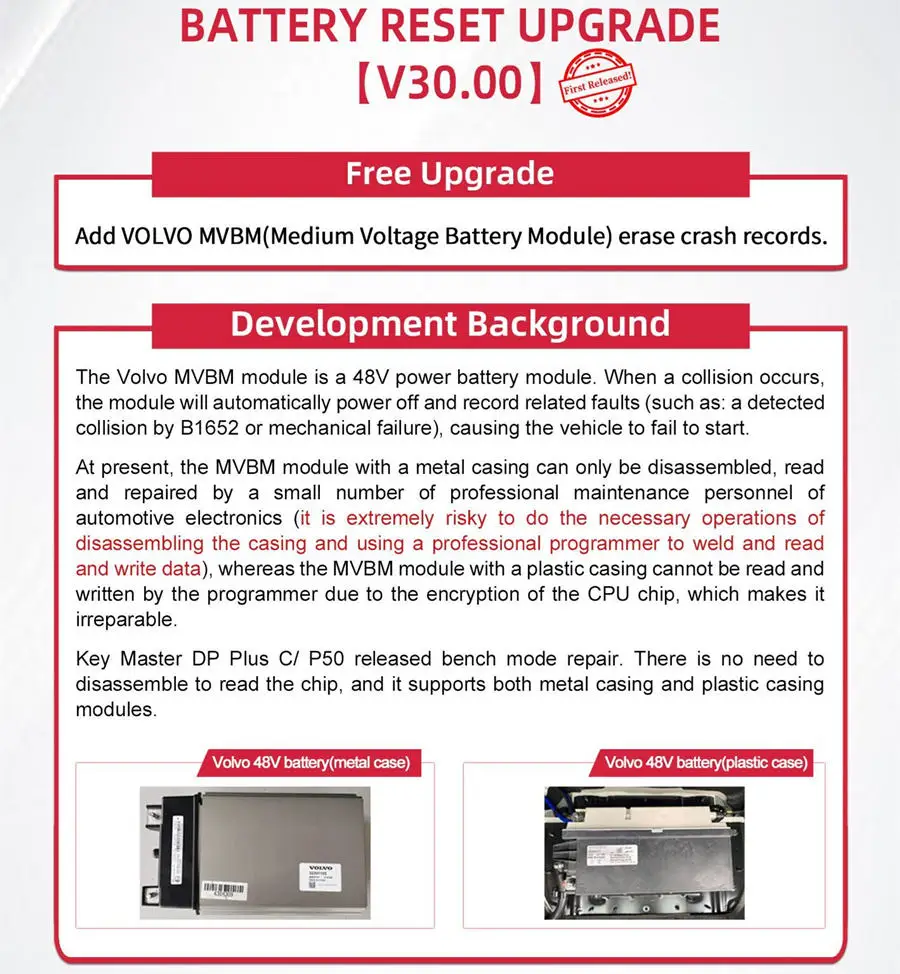

P50 BATTERY RESET UPGRADE V30.00:
Add for VOLVO MVBM(Medium Voltage Battery Module) erase crash records.
P50 Airbag Reset Upgrade V30.33:

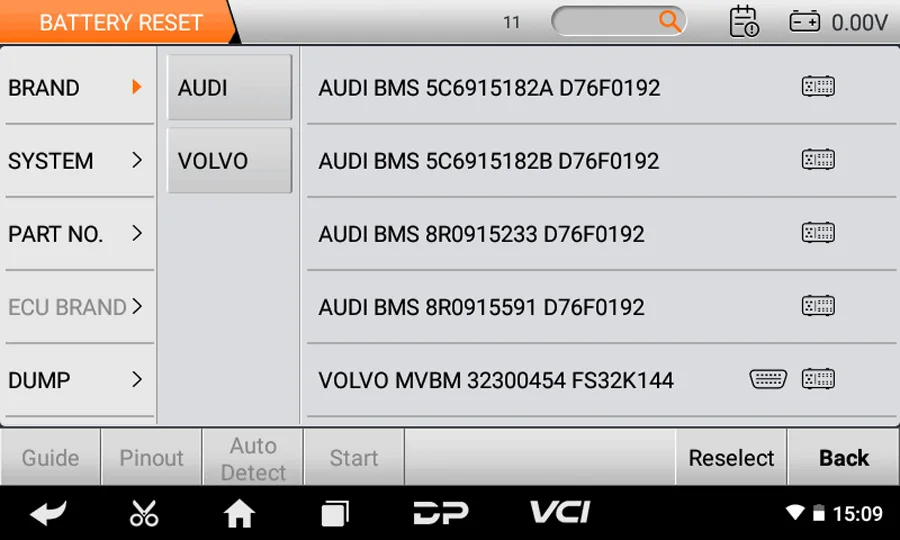

Function Display:

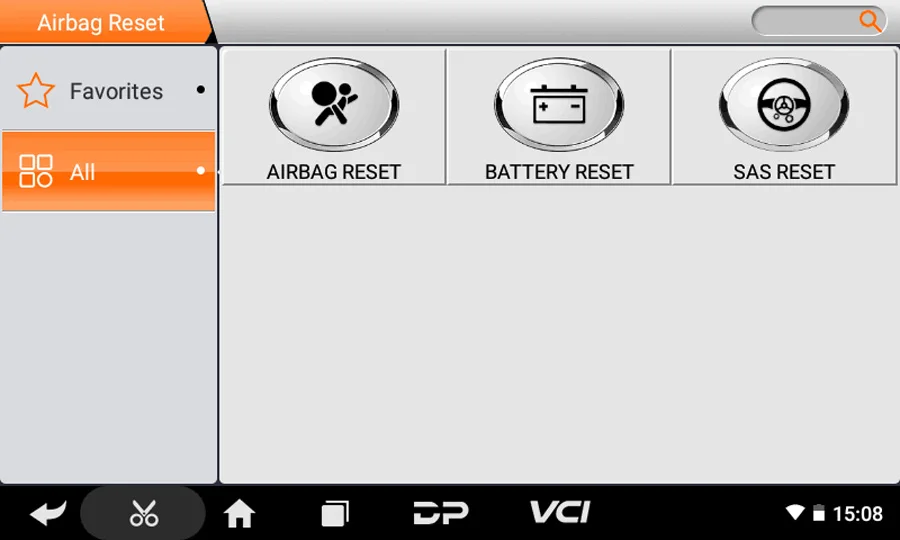

1. The main page after registration：
OBDSTAR P50 Specifications:
Operation system |
Android 5.1.1 |
CPU |
RK3128 quad-core ARM cortex A7 |
Battery |
2600mA, rechargeable polymer lithium battery |
Extension memory card |
32G micro SD (TF) card supported |
Storage capacity |
16GB |
LCD |
5.0 inch |
LCD resolution |
800*480 |
Touch screen |
Capacitive touch screen |
Wifi |
Supported |
Working temperature |
-20℃ ~ 55℃(14℉ ~ 131℉) |
Storage temperature |
-20℃ ~ 70℃(-4℉ ~ 158℉) |
Weight |
About 700g |
Dimension |
198mm*115*mm*31mm |

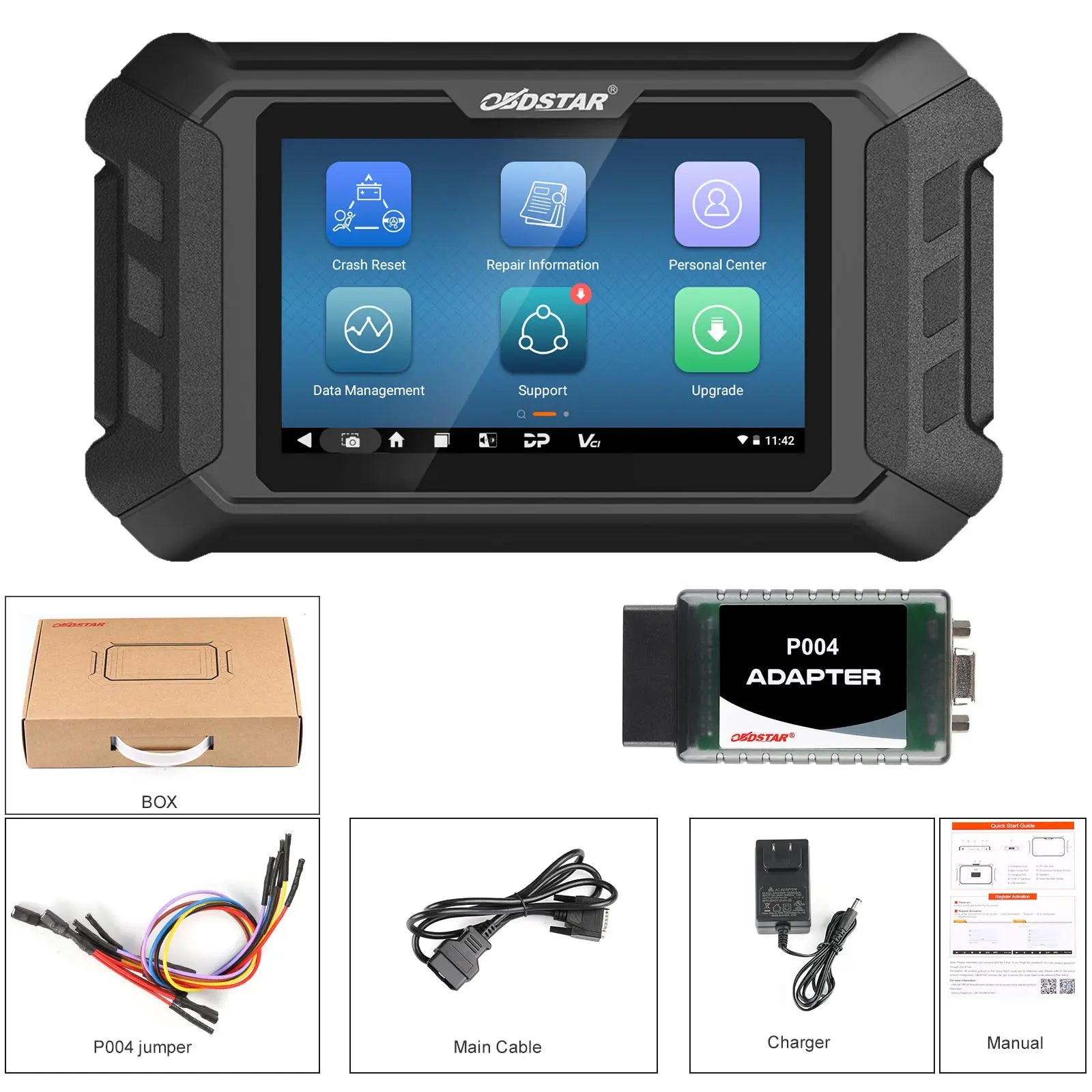

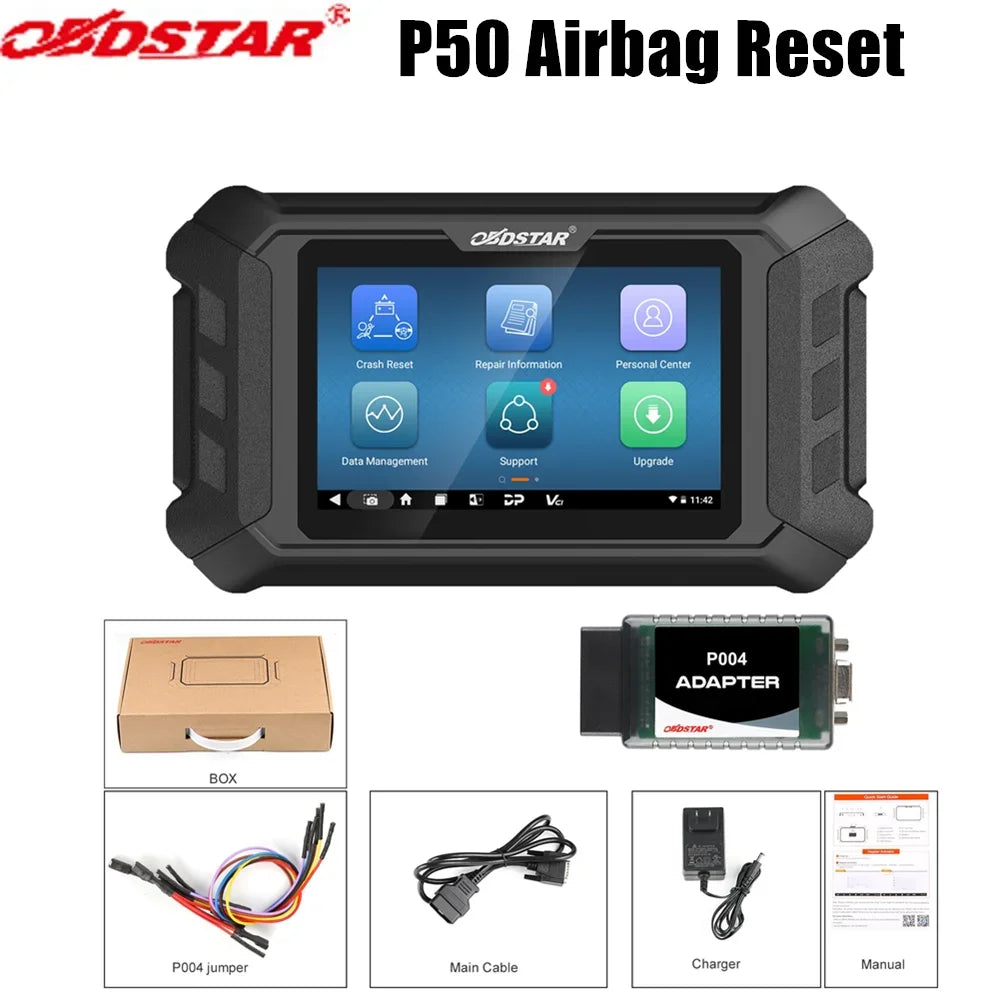

Package Includes:
1pc x P50 Main Unit
1pc x Main Cable
1pc x P004 Adapter
1pc x P004 Jumper
1pc x 12V2A Charger
