SPECIFICATIONS
Brand Name: NONE
Bundle Listing: Yes
Condition: New
High-concerned chemical: None
Included Hardware: Mounting Hardware
Interchange Part Number: Air Helper Spring Bag Suspension Leveling kit
Load Capacity: 5000 lbs up
Manufacturer Part Number: C29PQ7
Note: Instruction included
Placement on Vehicle: Left, Right, Rear
UPC: Does not apply
Universal Fitment: Performance/Custom
Fitment；

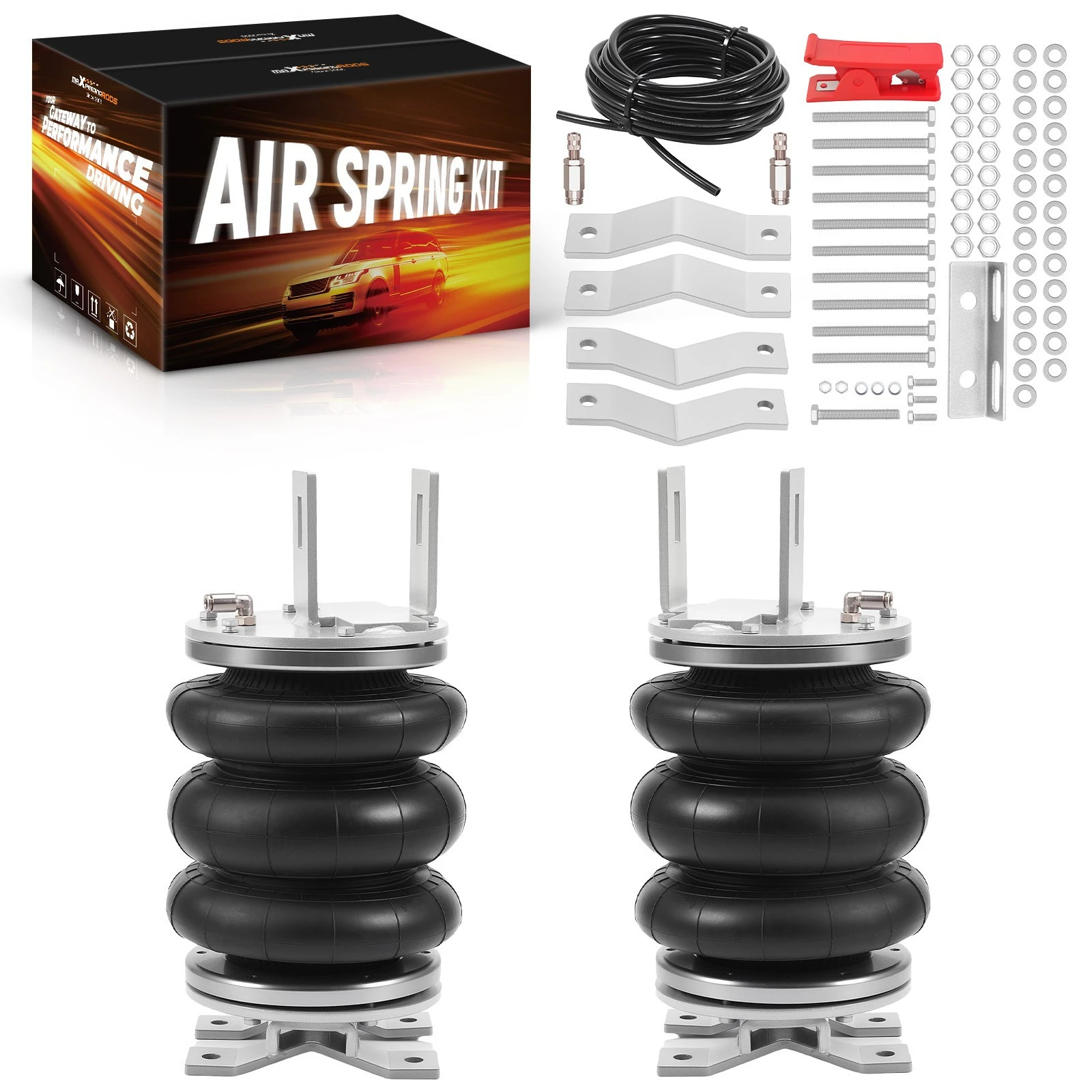

About the air suspension kit
- For DODGE RAM TRX – 4×4
- For DODGE RAM TRX 4WD AWD 2021-
- for Ram 1500 TRX Crew Cab Pickup 2021-2024
- for Ram 1500 TRX Launch Pickup 2021
- for Ram 1500 TRX Crew Cab Pickup 6.2L 2021-2024
- for Ram 1500 TRX Crew Cab Pickup V8 2021-2024
NOTE：
Fit for vehicles even if they have a 2″ lift.
About the air spring controller kit：
- UNIVERSAL FIT FOR MOST 1/2, 3/4 AND 1 TON PICKUPS AND VANS
- For Dodge ram 1500 2500 3500
- For Chevy Siverado 1500 2500 3500
- For GMC Sirra 1500 2500 3500
- For Ford F150 F250 F350
- For Toyota Tundra Tacoma
Feature:
About the air suspension kit
- 1、Stress Test Over 5,000,000 Times: Durable and Safe.
- 2、Burst Pressure≥2.0MPa: High Compressive Strength and Less Noise.
- 3、100% Air Tightness Guarantee.

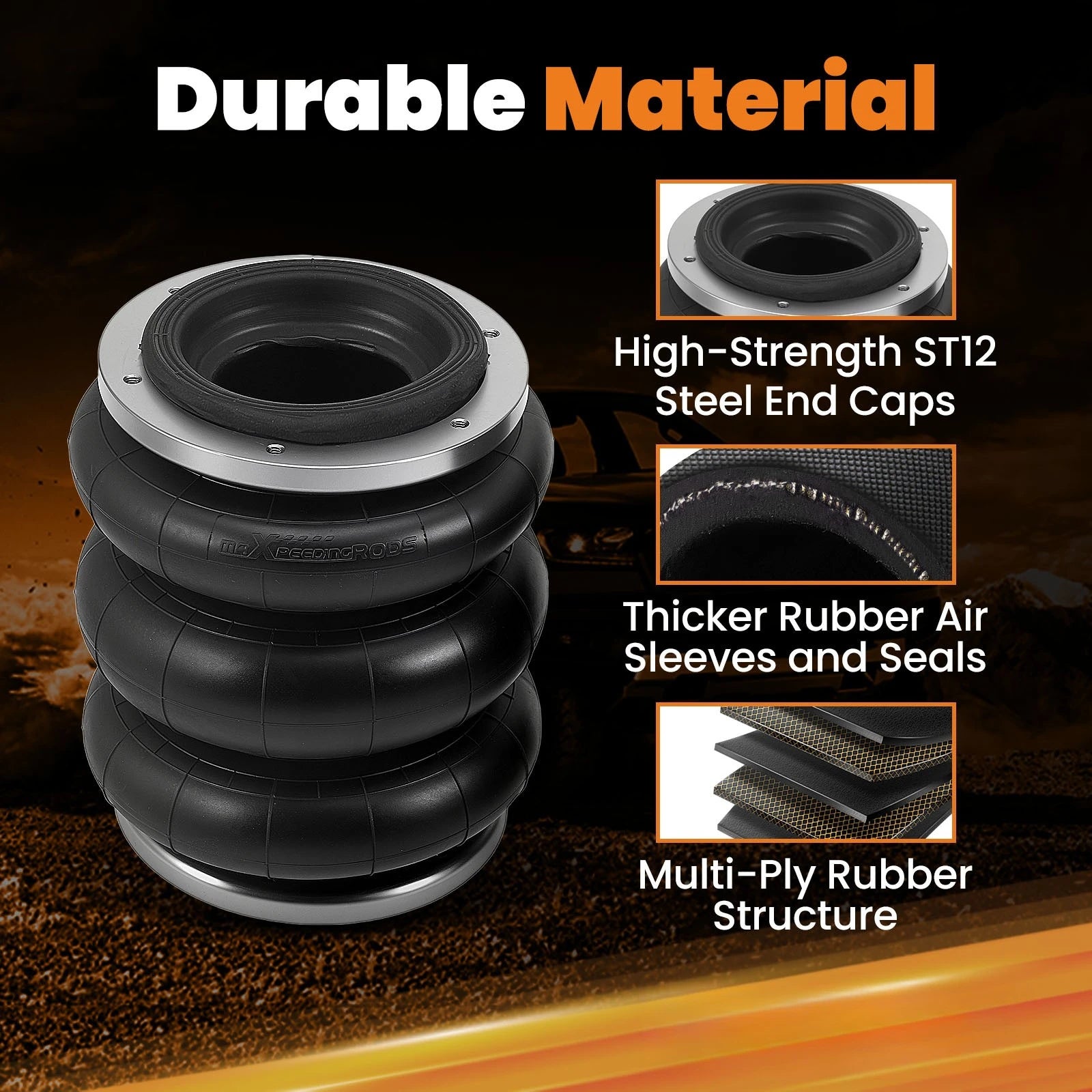

- 4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F): Premium Natural Rubber Material.
- 5、 4-Layer reinforcement construction: Enhances air spring load support.

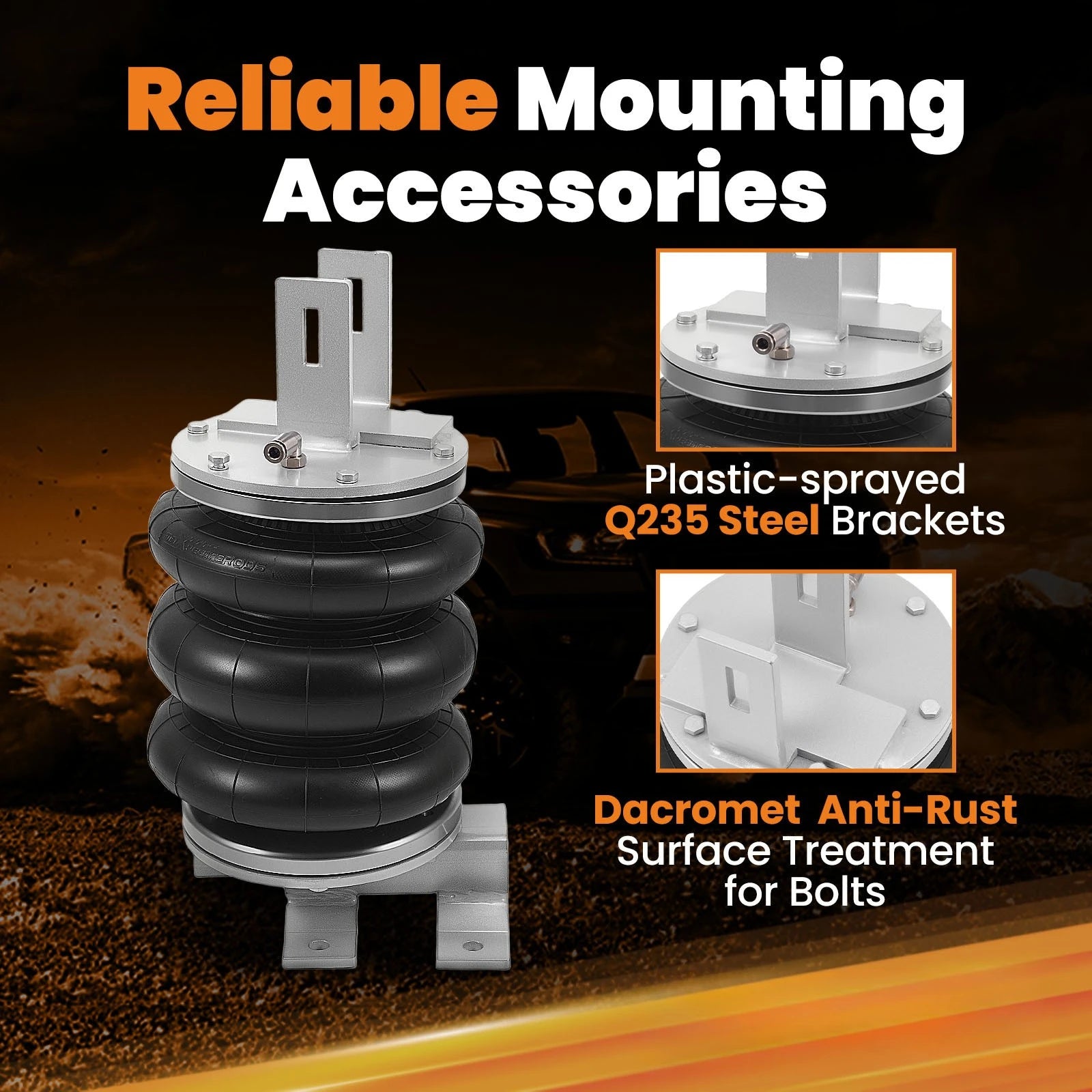

- 6、Use high-quality steel with high load-bearing capacity and long life.
- 7、Excellent and practical bolt-on installation.
- 8、Safe carrying capacity and stability.
- 9、Restore the original ride height and improve ride quality.
- 10、Ensure our driving comfort and reduce tire wear.
- 11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
About the air spring controller kit
- 1、Allows you to monitor and adjust the air pressure in the air spring bag from the driver's cab.
- 2、Performs well for light-duty or medium-duty applications and for occasional hauling or towing.

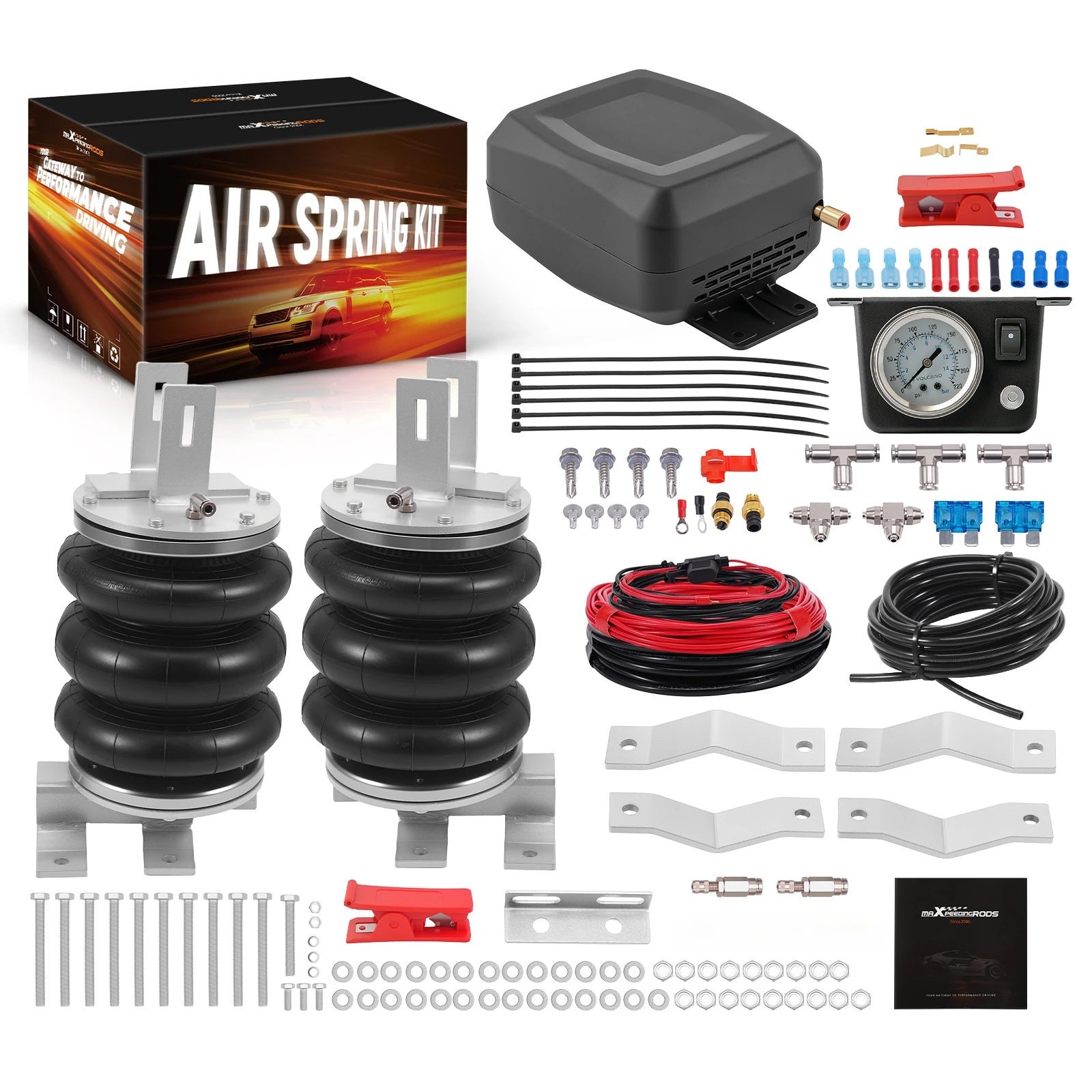

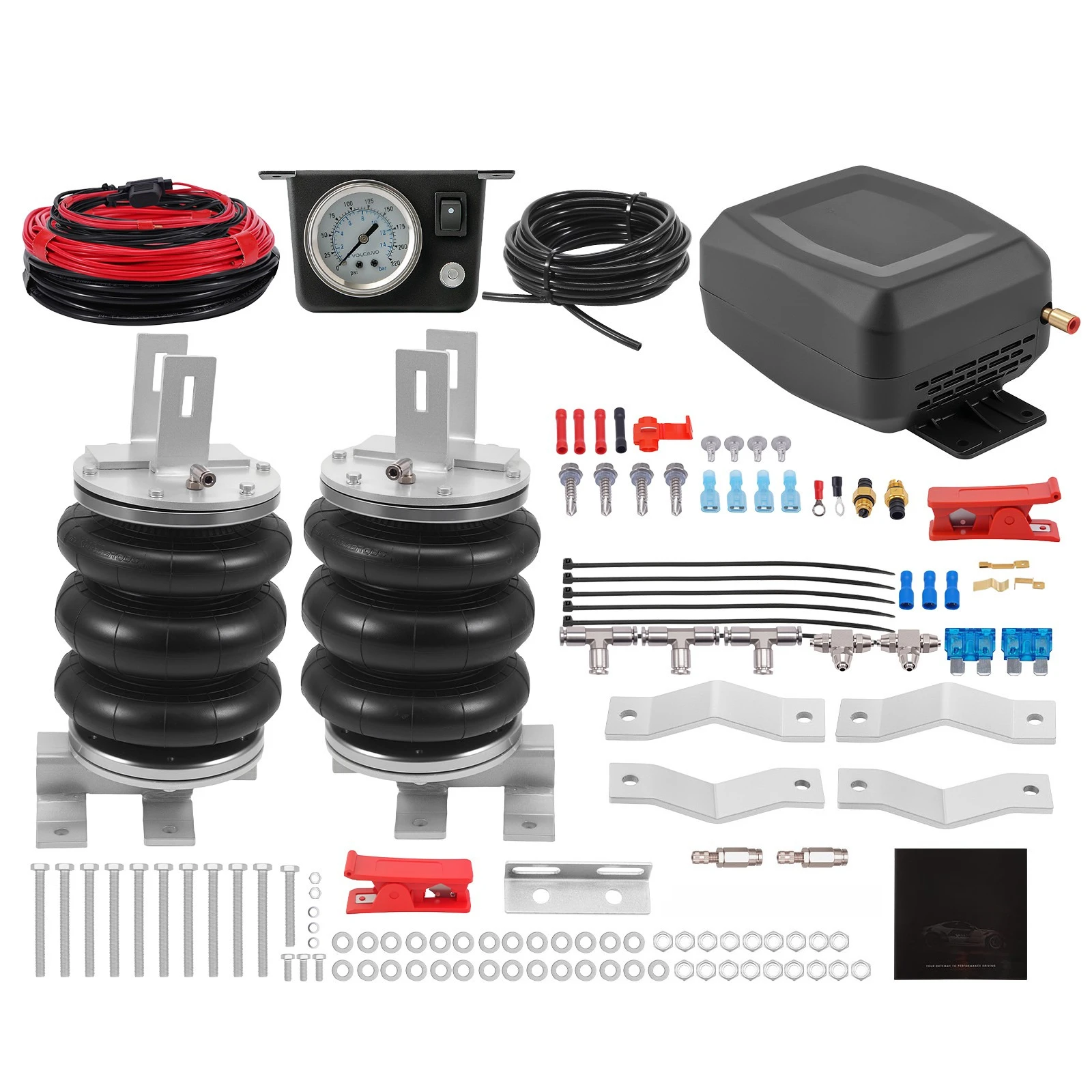

- 3、Includes onboard air compressor, single-gauge dash panel, air lines and hardware.
- 4、Compatible with any brand of air springs.
- 5、Single-path controls let you adjust 1 pair of air springs/shock.
- 6、Strict quality inspection to ensure long-term use without damage
- 7、Maximum air pressure: 100 psi.
- 8、Recommended working pressure: 5-70 PSI
- 9、Wire harness has flame retardant properties.
- 10、The air compressor has quality assurance.
- 11、The air compressor has a waterproof casing.
Specification:
- Condition: Brand New
- Minimum PSI: 5 PSI
- Maximum PSI: 100PSI
- Placement on Vehicle: Rear left and right
- Air spring---

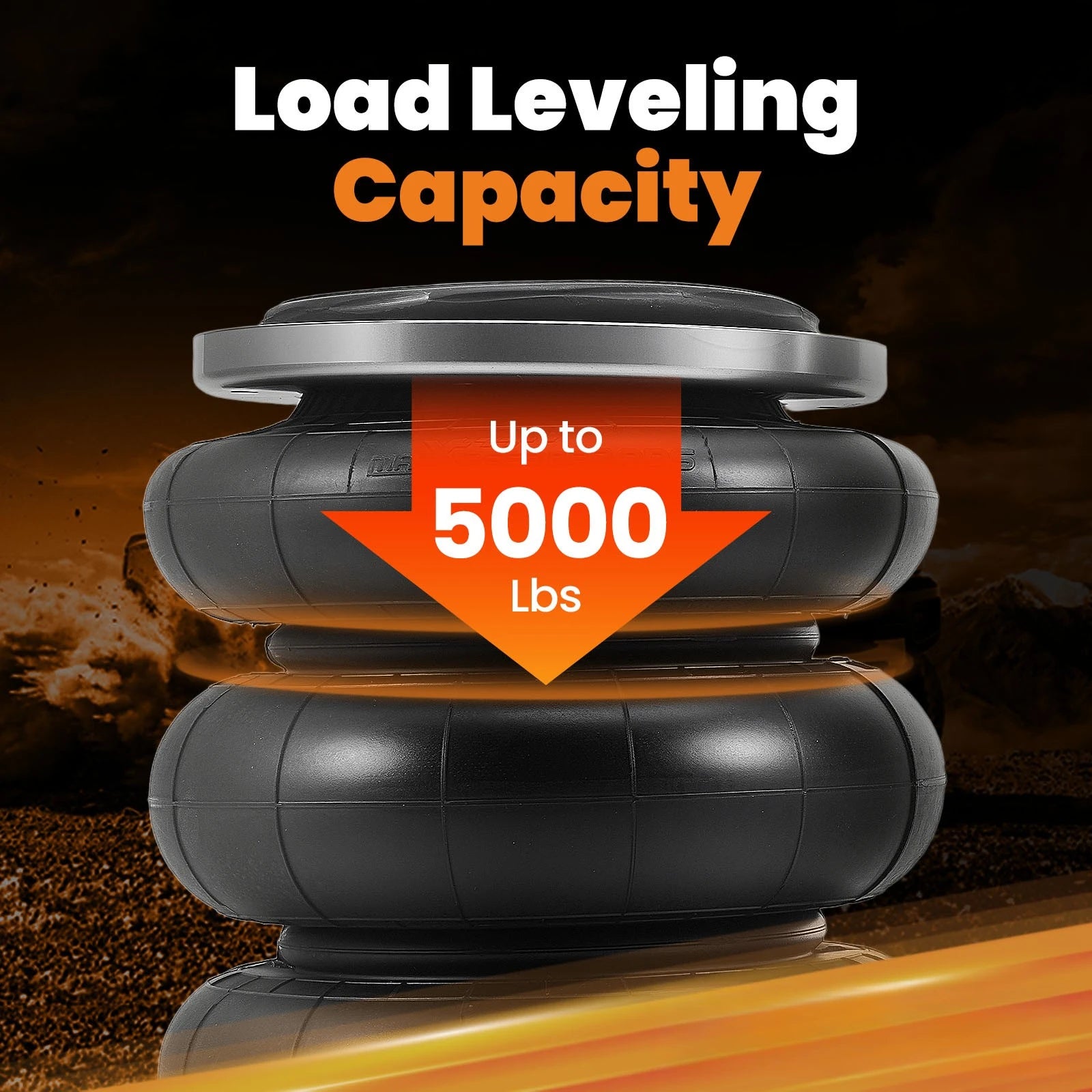

- Load capacity：Up to 5000 LBS
- Stroke: 220 mm
- Max. Extended: 330 mm
- Min. Compressed: 110mm
- Design height: 250 mm
